BIONIKA BONELIT, Narrow abutment, angled, positioned, type-A

Brand characteristics

The BIONIKA Bonelit implant system utilizes an advanced “tube-in-tube” connection concept with a four-position, ribbed anti-rotation design that ensures a stable, micromovement-free fit between the abutment and the implant.

The conical precision connection provides optimal force transmission by directing loads deep into the implant body, thereby reducing stress on the cortical bone.

Placement at or slightly below the cortical level is recommended to enhance primary stability and maintain long-term bone preservation.

The internal platform-switching design allows the bone to naturally grow over the implant shoulder, providing biological sealing and lasting bone preservation.

The spirally micro-grooved, self-locking thread structure combined with the bone-condensing, anatomical root-shaped body ensures rapid osseointegration, high primary stability, and suitability for immediate loading.

The rounded implant apex facilitates surgical placement, ensuring accurate positioning and minimal bone stress.

The BIONIKA Bonelit system is compatible with the following platforms:

• ICX® da Vinci®
• Straumann® BoneLevel®

It offers a reliable alternative to premium implant systems, combining Hungarian precision with innovative engineering excellence.

Geometry characteristics

Narrow Angled Abutment for Constrained Spaces with Indexed Orientation

The Narrow abutment, angled, positioned, type-A is an implant-level restoration component specifically designed for cases requiring angulation correction in narrow interproximal spaces. Its slim profile is ideal for limited space within the dental arch, while the angled configuration allows for the compensation of suboptimally placed implants.

The Type A indexed connection ensures that one specific flat surface of the abutment interface always aligns with the same orientation relative to the top of the abutment. This guarantees fixed rotational positioning, which is essential in multi-implant cases—especially when combined with angled abutments. Accurate repositioning enhances the alignment of prosthetic components and contributes to a harmonious soft tissue profile.

Main Advantages:

• Slender design: Ideal for narrow interdental spaces and limited gingival height.
• Angled correction: Optimises prosthetic axis by compensating for implant misalignment.
• Indexed connection (Type A): Ensures consistent orientation—flat face always in the same position.
• Implant-level fit: Direct, stable connection to the implant body.
• Biocompatible titanium: Safe, sterilizable, and durable for long-term clinical use.
• The product includes the screw.

Application Area:

The Narrow abutment, angled, positioned, type-A is an excellent solution for anterior regions or tightly spaced implant sites, especially where angular correction and precise prosthetic alignment are required during treatment planning.

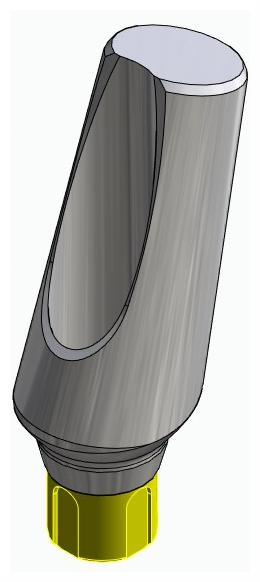

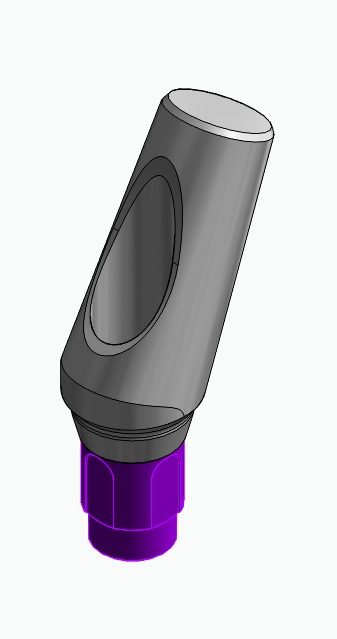

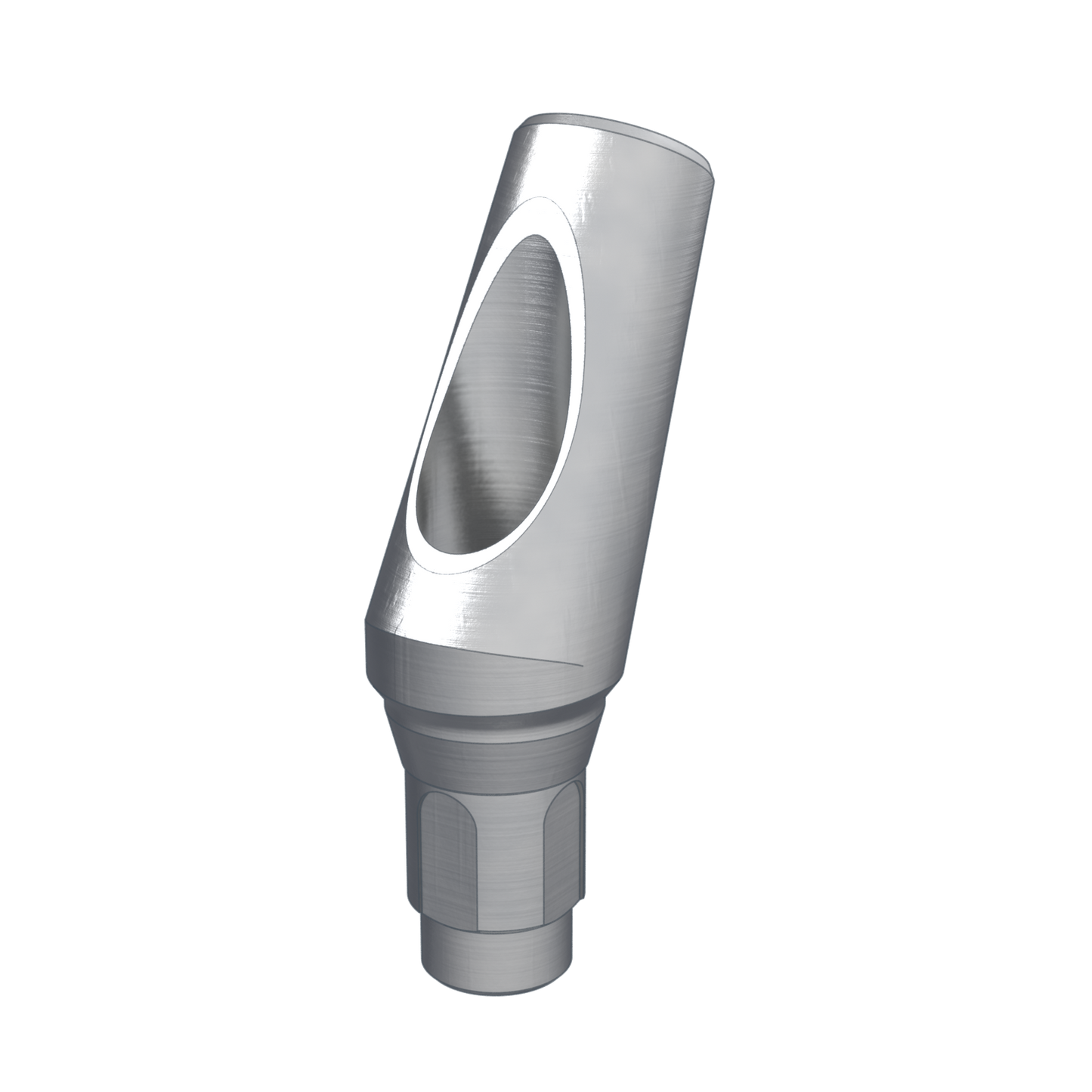

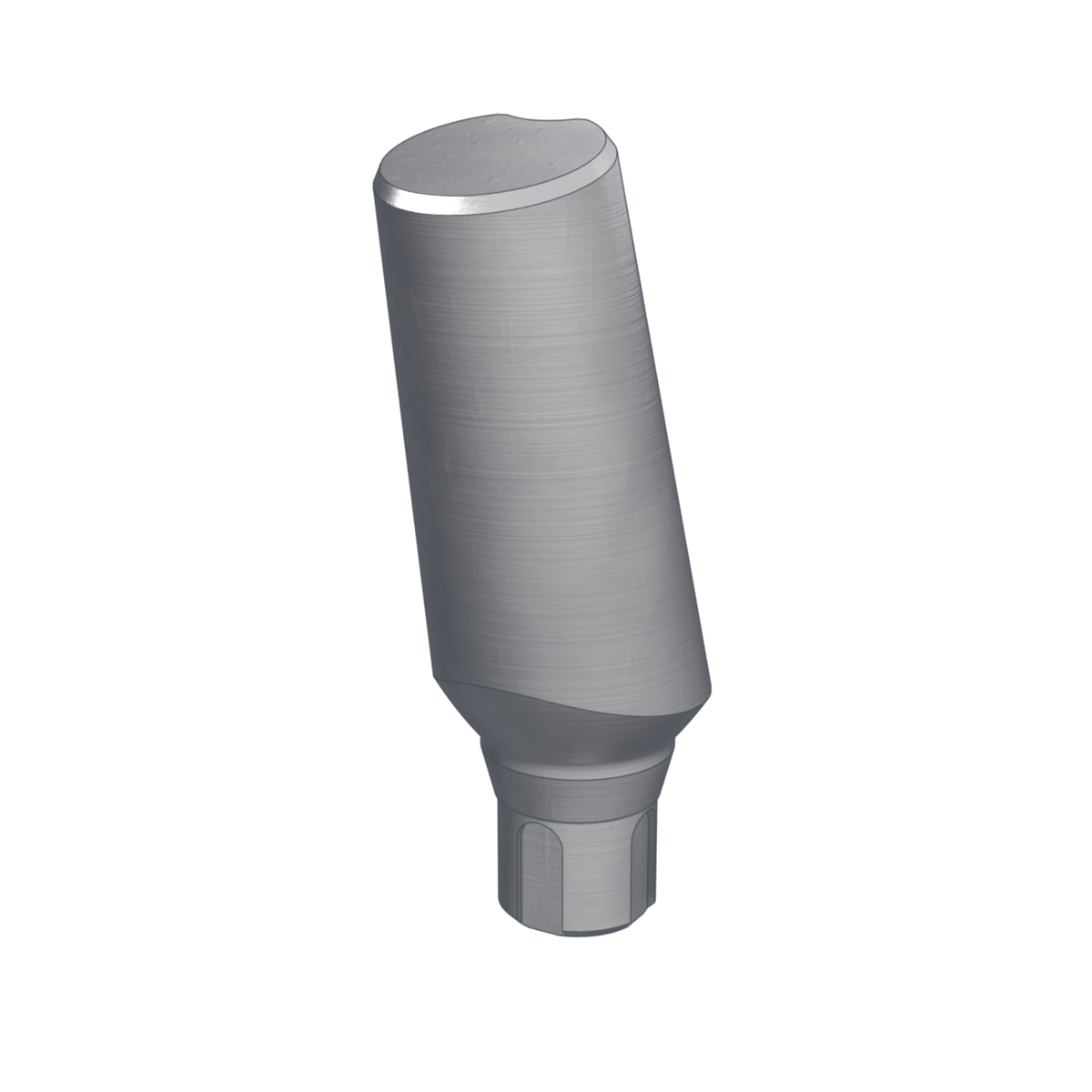

The product image is for illustration purposes only. Colour and geometry may vary depending on the selected dimensions.
