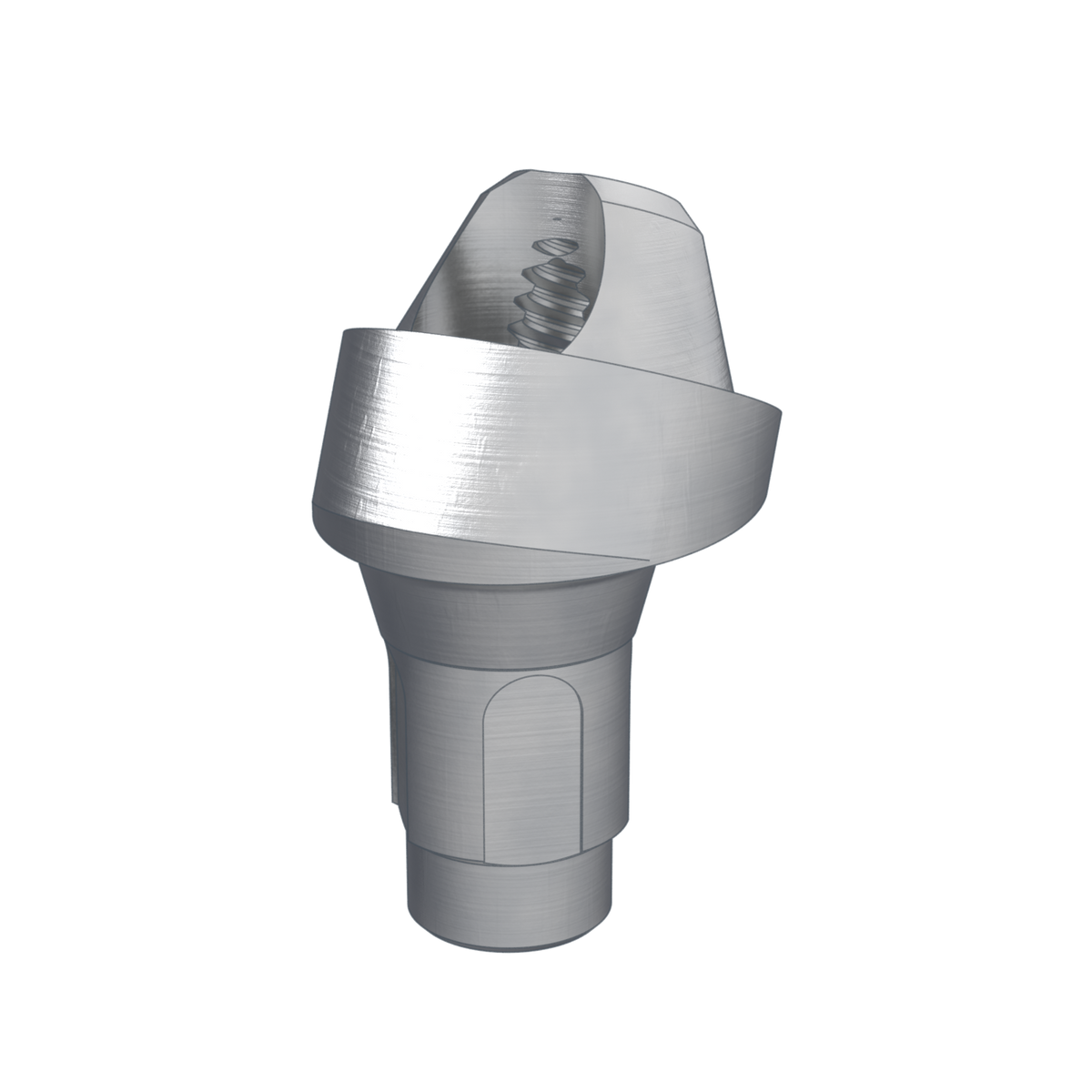

BIONIKA BONELIT, Multi-unit abutment, angled, positioned, wide, LT2, type-B

Brand characteristics

The BIONIKA Bonelit implant system utilizes an advanced “tube-in-tube” connection concept with a four-position, ribbed anti-rotation design that ensures a stable, micromovement-free fit between the abutment and the implant.

The conical precision connection provides optimal force transmission by directing loads deep into the implant body, thereby reducing stress on the cortical bone.

Placement at or slightly below the cortical level is recommended to enhance primary stability and maintain long-term bone preservation.

The internal platform-switching design allows the bone to naturally grow over the implant shoulder, providing biological sealing and lasting bone preservation.

The spirally micro-grooved, self-locking thread structure combined with the bone-condensing, anatomical root-shaped body ensures rapid osseointegration, high primary stability, and suitability for immediate loading.

The rounded implant apex facilitates surgical placement, ensuring accurate positioning and minimal bone stress.

The BIONIKA Bonelit system is compatible with the following platforms:

• ICX® da Vinci®
• Straumann® BoneLevel®

It offers a reliable alternative to premium implant systems, combining Hungarian precision with innovative engineering excellence.

Geometry characteristics

Angled Multi-Unit Abutment with Type B Orientation for LT2 System, Wide Design, M1.4 Internal Thread

The Multi-unit abutment, angled, positioned, wide, LT2, type-B is a prosthetic abutment designed for connection to implants or intermediate multi-unit bases, offering angular correction in cases where implant axes are not ideally aligned. Its wide profile enhances support for soft tissues and final restorations, particularly in the posterior region.

The Type B position-oriented design ensures that a specific apex of the connection interface always aligns in the same orientation relative to the top of the abutment. This precise orientation is essential for screw-retained restorations involving multiple implants, where alignment of contours, axes, and margins is critical to both aesthetic and functional outcomes.

The abutment features an M1.4 internal thread at the top, used to secure final prosthetic components such as suprastructures or bridge frameworks. The lower portion connects to the LT2 multi-unit platform without the need for a screw, ensuring a stable, geometry-based fit.

Main Advantages:

• Angular correction: Compensates for suboptimal implant angulations.
• Position-oriented design (Type B): A specific apex consistently aligns upon reinsertion.
• Wide profile: Provides greater support and stability for restorations in posterior zones.
• LT2 compatibility: Fully integrates with the corresponding multi-unit platform.
• M1.4 internal thread: Allows secure fixation of prosthetic components.
• Biocompatible titanium: Long-term durability, tissue-friendly, and sterilizable material.

Indications:

The Multi-unit abutment, angled, positioned, wide, LT2, type-B is an excellent solution for screw-retained restorations on multiple implants, where angular correction, stable support, precise orientation, and full compatibility with the LT2 system are required.

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
