BIONIKA BONELIT, Impression coping for closed tray, angled, type-A

Brand characteristics

The BIONIKA Bonelit implant system utilizes an advanced “tube-in-tube” connection concept with a four-position, ribbed anti-rotation design that ensures a stable, micromovement-free fit between the abutment and the implant.

The conical precision connection provides optimal force transmission by directing loads deep into the implant body, thereby reducing stress on the cortical bone.

Placement at or slightly below the cortical level is recommended to enhance primary stability and maintain long-term bone preservation.

The internal platform-switching design allows the bone to naturally grow over the implant shoulder, providing biological sealing and lasting bone preservation.

The spirally micro-grooved, self-locking thread structure combined with the bone-condensing, anatomical root-shaped body ensures rapid osseointegration, high primary stability, and suitability for immediate loading.

The rounded implant apex facilitates surgical placement, ensuring accurate positioning and minimal bone stress.

The BIONIKA Bonelit system is compatible with the following platforms:

• ICX® da Vinci®
• Straumann® BoneLevel®

It offers a reliable alternative to premium implant systems, combining Hungarian precision with innovative engineering excellence.

Geometry characteristics

Impression Coping with Angle Correction and Fixed Orientation for Precise Transfer

The Impression coping for closed tray, angled, type-A is an implant-level component designed for closed tray impression techniques. Its angled geometry allows for angle correction, making it possible to accurately capture the position of implants placed at non-ideal angles. The Type A orientation ensures that the coping consistently locks into the same predefined rotational position on the implant, supporting precise prosthetic alignment.

The Type A system refers to a design where one flat surface of the connecting interface always aligns identically relative to the top part of the coping. This facilitates predictable and reproducible adjustments, particularly important in multiple-implant restorations.

Main Advantages:

• Angled design: Enables angle correction for non-ideal implant positions.
• For closed tray technique: Impression taking without removing the coping from the patient’s mouth.
• Type A positioning: Flat surface of the connector consistently aligned with the top part.
• Implant-level connection: Direct fit to the implant interface.
• Biocompatible metal: Precisely machined, durable, and sterilisable material.

Indications:

The Impression coping for closed tray, angled, type-A is the ideal solution in clinical cases requiring both angle correction and fixed positioning during impression taking, especially in multi-implant configurations.

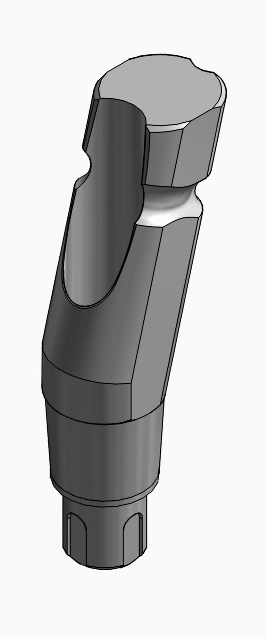

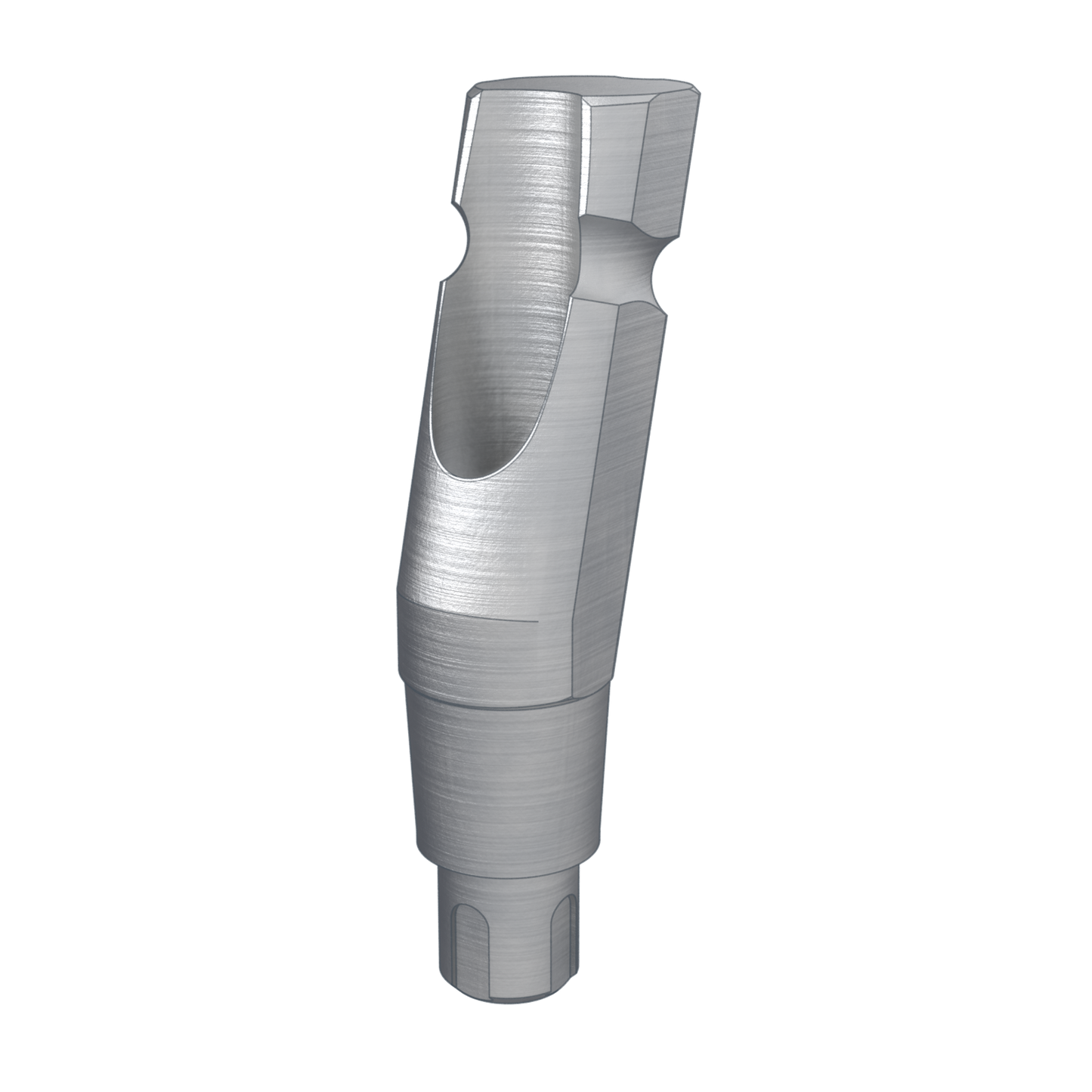

The product image is for illustration purposes only; colour and geometry may vary depending on selected parameters.
