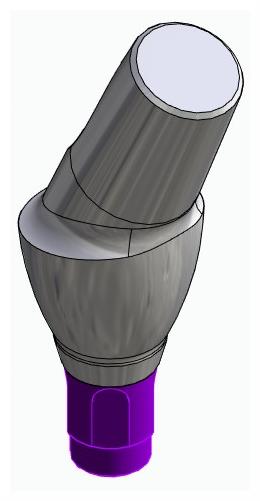

BIONIKA BONELIT, Anatomic abutment, angled, 25°, positioned, type-B

Brand characteristics

The BIONIKA Bonelit implant system utilizes an advanced “tube-in-tube” connection concept with a four-position, ribbed anti-rotation design that ensures a stable, micromovement-free fit between the abutment and the implant.

The conical precision connection provides optimal force transmission by directing loads deep into the implant body, thereby reducing stress on the cortical bone.

Placement at or slightly below the cortical level is recommended to enhance primary stability and maintain long-term bone preservation.

The internal platform-switching design allows the bone to naturally grow over the implant shoulder, providing biological sealing and lasting bone preservation.

The spirally micro-grooved, self-locking thread structure combined with the bone-condensing, anatomical root-shaped body ensures rapid osseointegration, high primary stability, and suitability for immediate loading.

The rounded implant apex facilitates surgical placement, ensuring accurate positioning and minimal bone stress.

The BIONIKA Bonelit system is compatible with the following platforms:

• ICX® da Vinci®
• Straumann® BoneLevel®

It offers a reliable alternative to premium implant systems, combining Hungarian precision with innovative engineering excellence.

Geometry characteristics

Customisable Abutment for Significant Angle Correction with Natural Contours and Precise Orientation

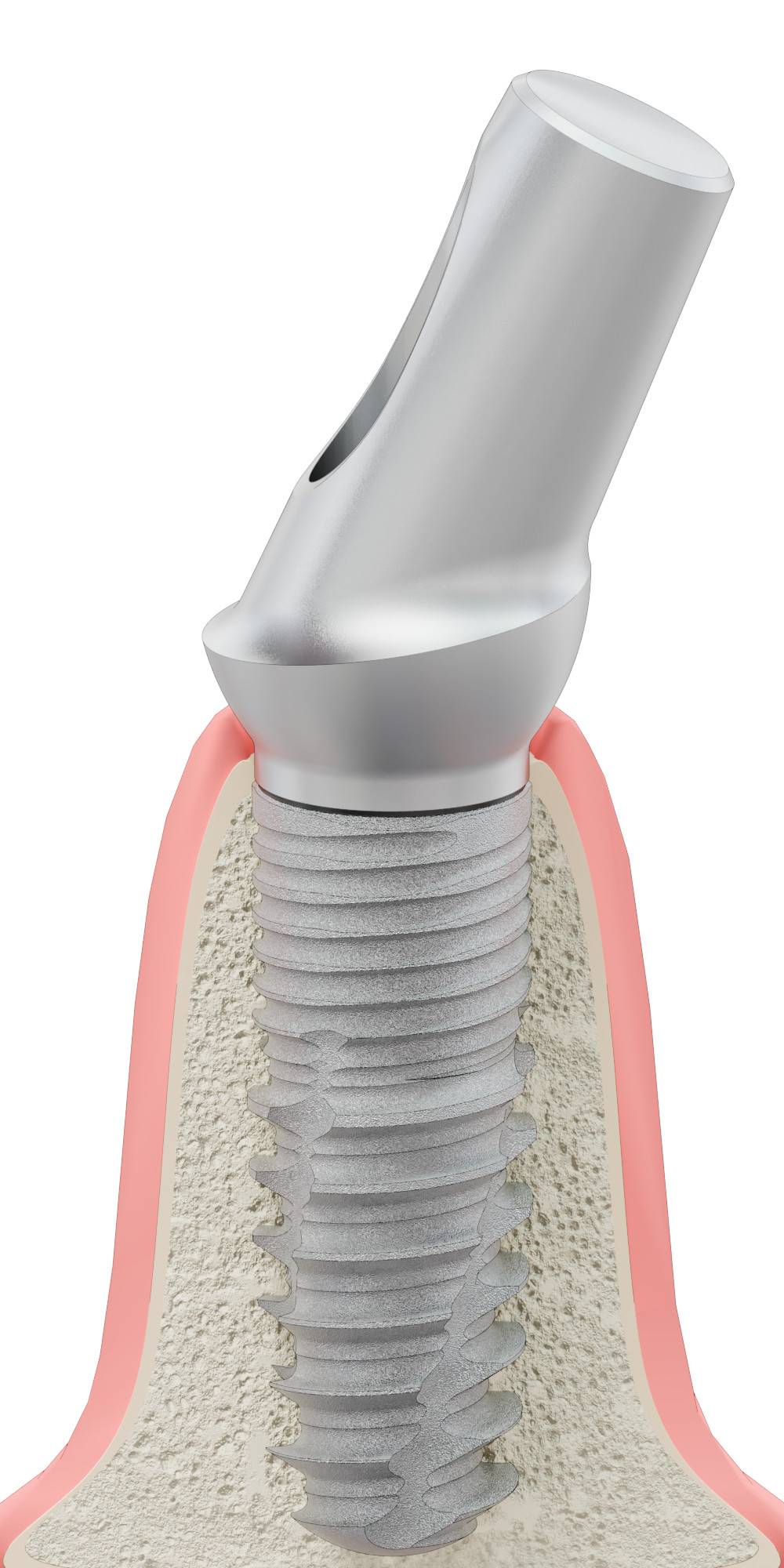

The Anatomic abutment, angled, 25°, positioned, type-B is an implant-level, customisable (grindable) abutment designed for use in cases involving greater implant angulation. The 25° inclination enables the correction of substantial deviations between the implant and prosthetic axes, while the anatomical form supports the creation of a natural gingival profile and aesthetic appearance.

The Type B indexing means that a defined point on the connection surface is always oriented in the same direction relative to the top of the abutment. This precise orientation allows the abutment to be repositioned accurately every time, which is crucial for the coordinated and functionally reliable construction of multi-implant restorations.

Main Advantages:

• 25° angle correction: Compensates for significant implant axis deviations.
• Anatomical design: Preformed geometry supports natural soft tissue contouring and appearance.
• Indexed orientation (Type B): Defined apex ensures accurate repositioning every time.
• Customisable form: Suitable for individual adjustment in clinical and laboratory settings.
• Implant-level connection: Stable and direct fit to the implant.
• Biocompatible titanium: Sterilisable, durable, and suitable for long-term clinical application.
• The screw is included.

Indications:

The Anatomic abutment, angled, 25°, positioned, type-B is the ideal choice in situations where the implant axis significantly deviates from the prosthetic axis, and precise orientation is required for both functional reliability and aesthetic results.

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
