BIONIKA BONELIT, Anatomic abutment, angled, 25°, positioned, type-A

Brand characteristics

The BIONIKA Bonelit implant system utilizes an advanced “tube-in-tube” connection concept with a four-position, ribbed anti-rotation design that ensures a stable, micromovement-free fit between the abutment and the implant.

The conical precision connection provides optimal force transmission by directing loads deep into the implant body, thereby reducing stress on the cortical bone.

Placement at or slightly below the cortical level is recommended to enhance primary stability and maintain long-term bone preservation.

The internal platform-switching design allows the bone to naturally grow over the implant shoulder, providing biological sealing and lasting bone preservation.

The spirally micro-grooved, self-locking thread structure combined with the bone-condensing, anatomical root-shaped body ensures rapid osseointegration, high primary stability, and suitability for immediate loading.

The rounded implant apex facilitates surgical placement, ensuring accurate positioning and minimal bone stress.

The BIONIKA Bonelit system is compatible with the following platforms:

• ICX® da Vinci®
• Straumann® BoneLevel®

It offers a reliable alternative to premium implant systems, combining Hungarian precision with innovative engineering excellence.

Geometry characteristics

Customisable Abutment with Natural Contour and Precise Orientation for Extended Angle Correction

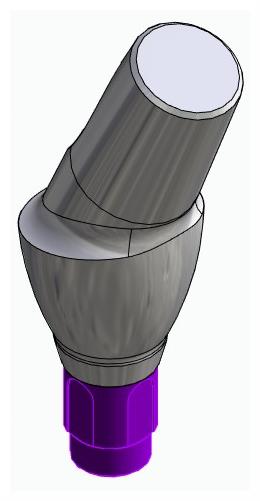

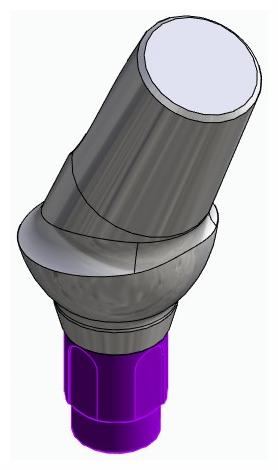

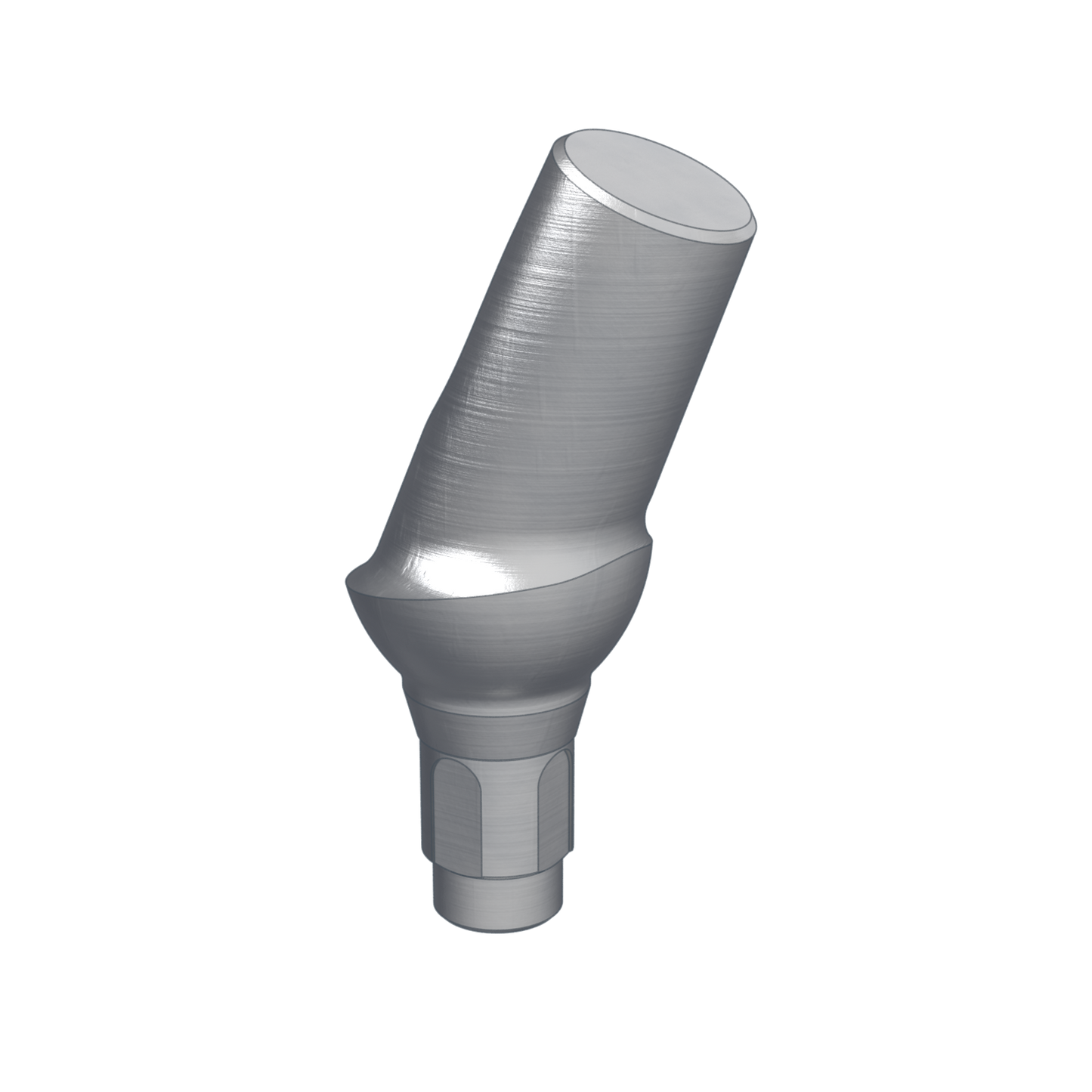

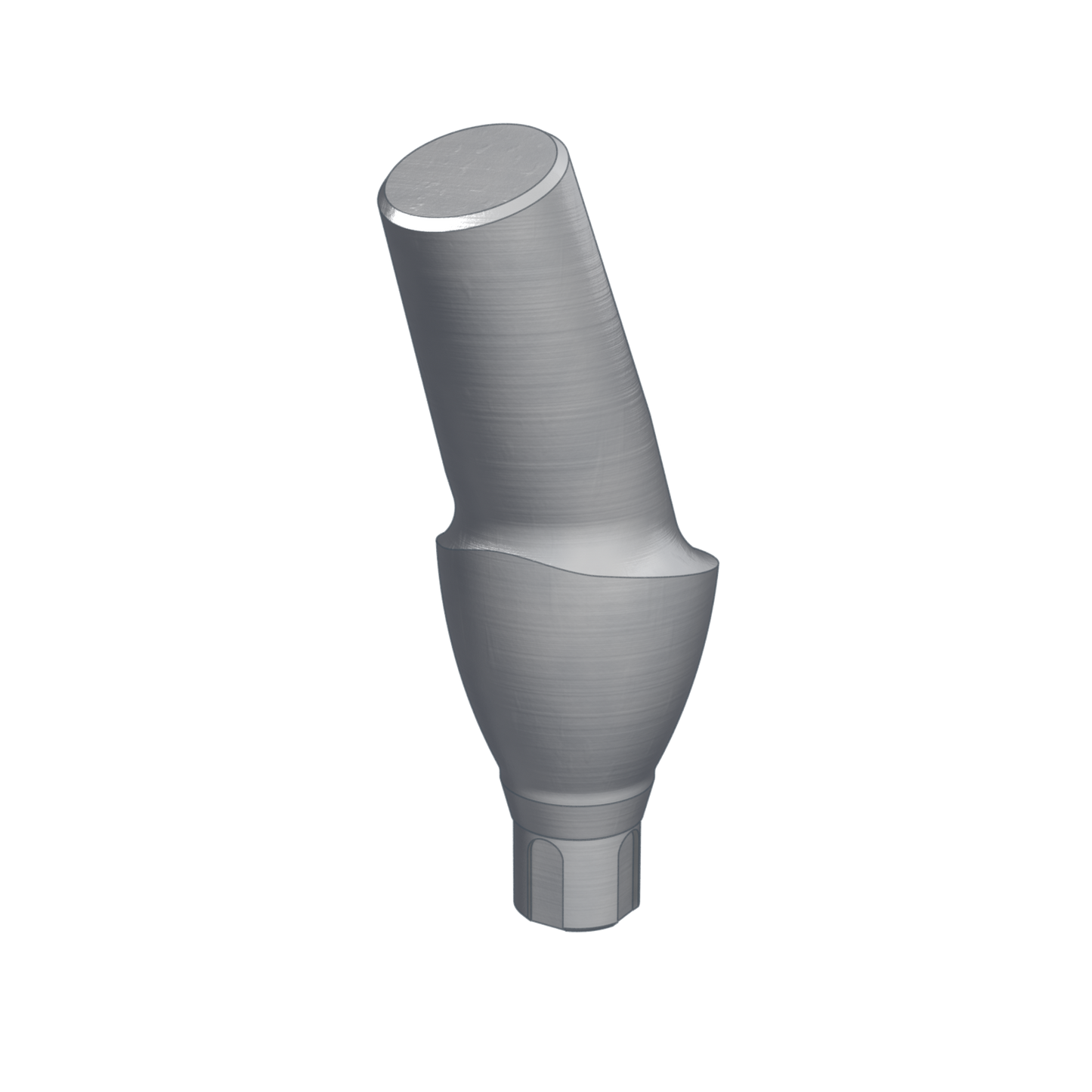

The Anatomic abutment, angled, 25°, positioned, type-A is an implant-level, customisable (grindable) abutment designed for cases requiring significant angle correction without compromising on aesthetic or functional outcomes. The 25° angulation allows for the compensation of major axis deviations, while the anatomical shape supports the creation and maintenance of a natural soft tissue profile.

The Type A indexed design ensures that a defined flat surface of the connection always aligns in the same direction relative to the top part of the abutment. This fixed orientation is particularly advantageous in multi-implant restorations, as it ensures precision in fit, aesthetics, and technical execution.

Main Advantages:

• 25° angle correction: Ideal for compensating substantial axial deviations.
• Anatomical shape: Preformed geometry supports the formation and preservation of natural gingival contours.
• Indexed orientation (Type A): Fixed flat surface ensures accurate repositioning every time.
• Customisable design: Allows individual shaping during laboratory or clinical procedures.
• Implant-level fit: Stable and reliable connection with the implant.
• Biocompatible titanium: Sterilisable, durable, and safe for long-term clinical use.
• The screw is included.

Indications:

The Anatomic abutment, angled, 25°, positioned, type-A is an ideal solution in cases where the implant axis significantly diverges from the intended prosthetic axis, and precise orientation and aesthetic integration are essential.

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
