BIONIKA BONELIT, Anatomic abutment, angled, 15°, positioned, type-B

Brand characteristics

The BIONIKA Bonelit implant system utilizes an advanced “tube-in-tube” connection concept with a four-position, ribbed anti-rotation design that ensures a stable, micromovement-free fit between the abutment and the implant.

The conical precision connection provides optimal force transmission by directing loads deep into the implant body, thereby reducing stress on the cortical bone.

Placement at or slightly below the cortical level is recommended to enhance primary stability and maintain long-term bone preservation.

The internal platform-switching design allows the bone to naturally grow over the implant shoulder, providing biological sealing and lasting bone preservation.

The spirally micro-grooved, self-locking thread structure combined with the bone-condensing, anatomical root-shaped body ensures rapid osseointegration, high primary stability, and suitability for immediate loading.

The rounded implant apex facilitates surgical placement, ensuring accurate positioning and minimal bone stress.

The BIONIKA Bonelit system is compatible with the following platforms:

• ICX® da Vinci®
• Straumann® BoneLevel®

It offers a reliable alternative to premium implant systems, combining Hungarian precision with innovative engineering excellence.

Geometry characteristics

Angulated, Customisable Abutment with Natural Form and Precise Orientation

The Anatomic abutment, angled, 15°, positioned, type-B is an implant-level, customisable (grindable) abutment developed for angle correction in cases where implant placement is not ideal, and for achieving aesthetic and functional restorations. The 15° angulation allows compensation for deviations between the prosthetic and implant axes, while the anatomical form supports the development of a natural gingival contour.

The Type B indexed design means that a defined point of the connection surface always aligns with the same position relative to the top of the abutment. This fixed orientation ensures that the abutment is repositioned in the exact same alignment every time, which is essential in multi-implant cases to maintain coordination between prosthetic components.

Main Advantages:

• 15° angle correction: Helps to compensate for non-optimal implant angulation.
• Anatomical design: Supports a natural appearance with preformed gingival contours.
• Indexed orientation (Type B): Defined point of the connection ensures consistent repositioning.
• Customisable form: Allows individual shaping in clinical or laboratory settings.
• Implant-level fit: Direct and stable connection to the implant.
• Biocompatible titanium: Sterilisable, durable, and clinically reliable material.
• The screw is included.

Indications:

The Anatomic abutment, angled, 15°, positioned, type-B is an ideal solution for aesthetic zones or multi-implant restorations where angle correction and precise orientation are essential for achieving a stable and visually pleasing long-term outcome.

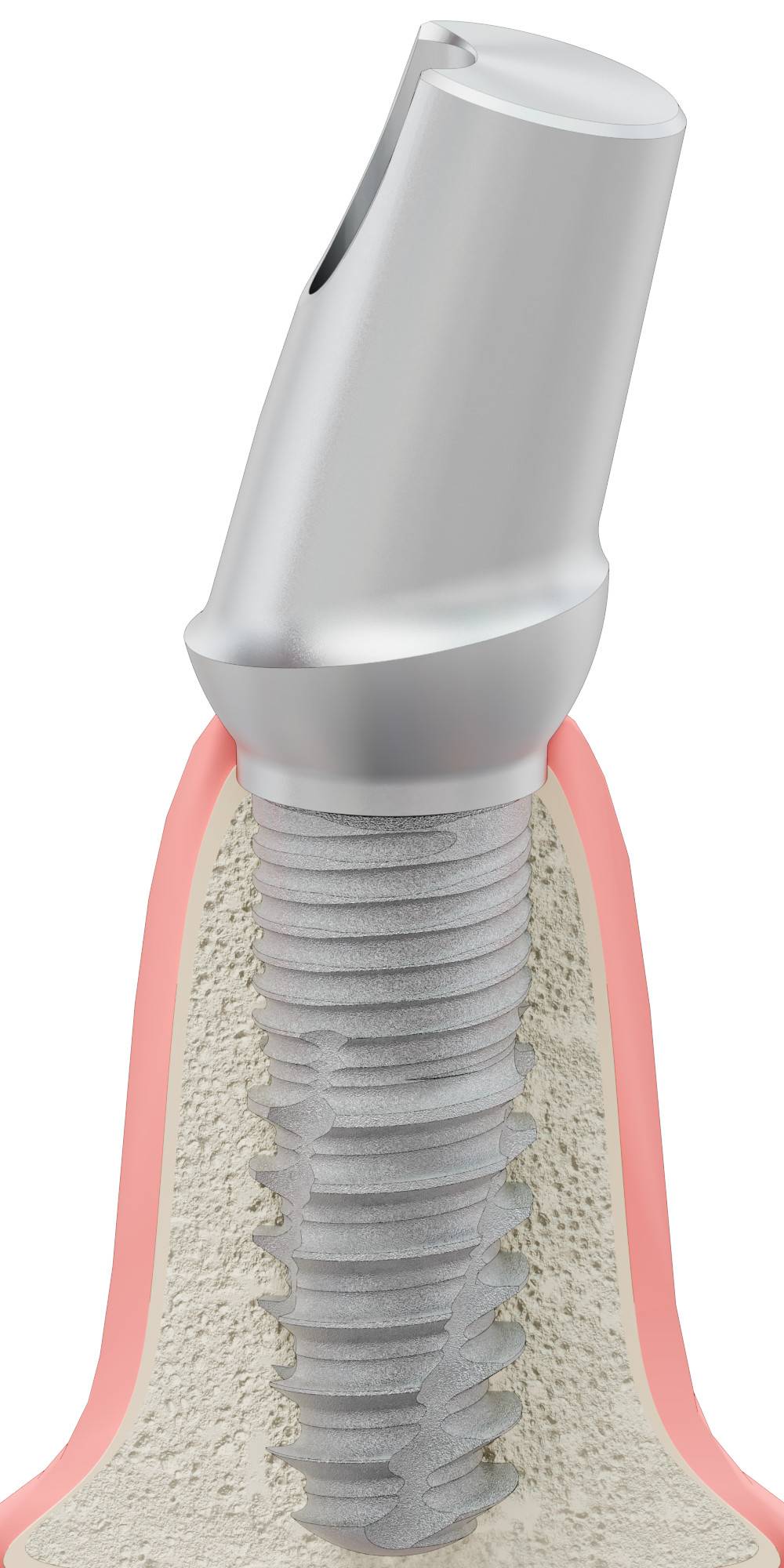

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
