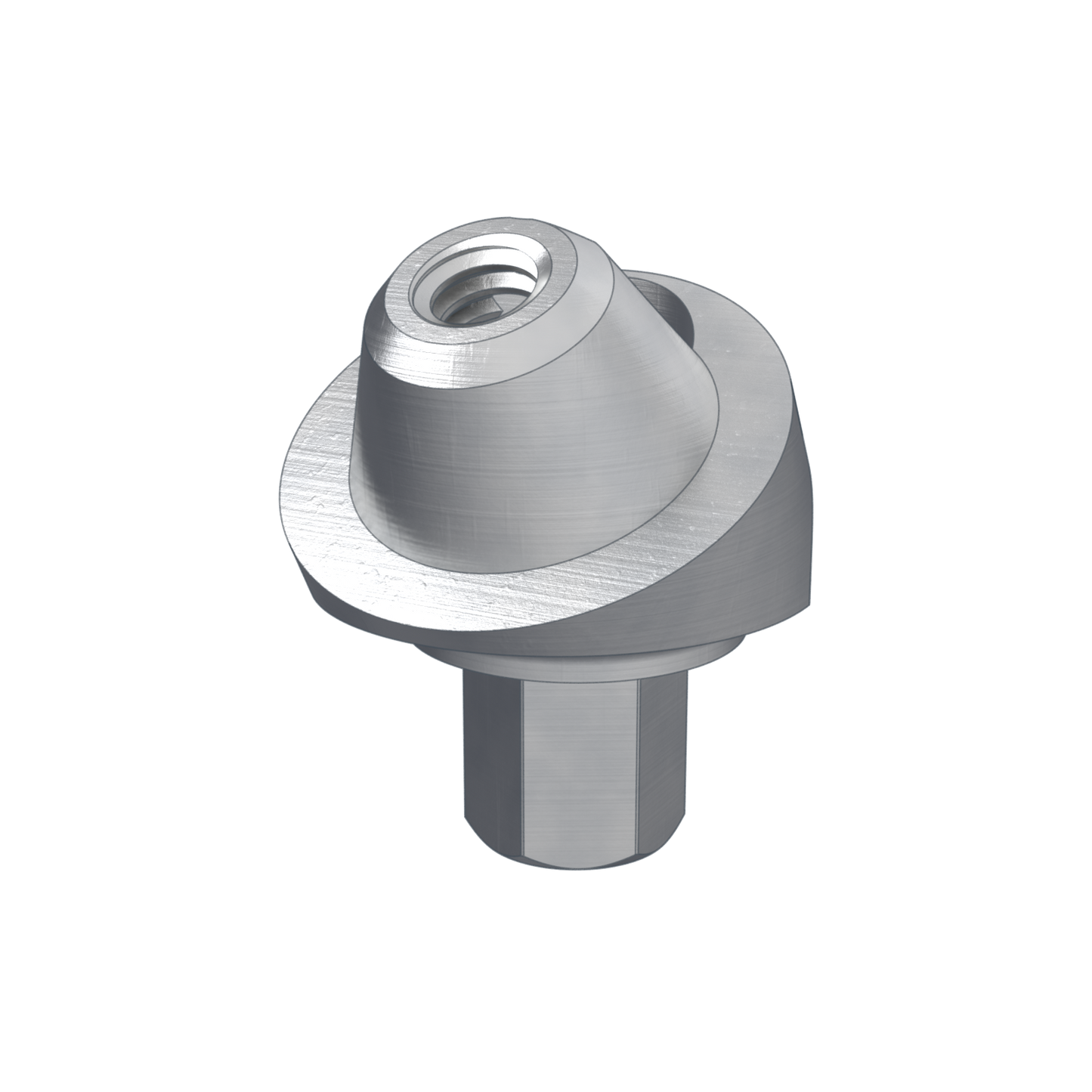

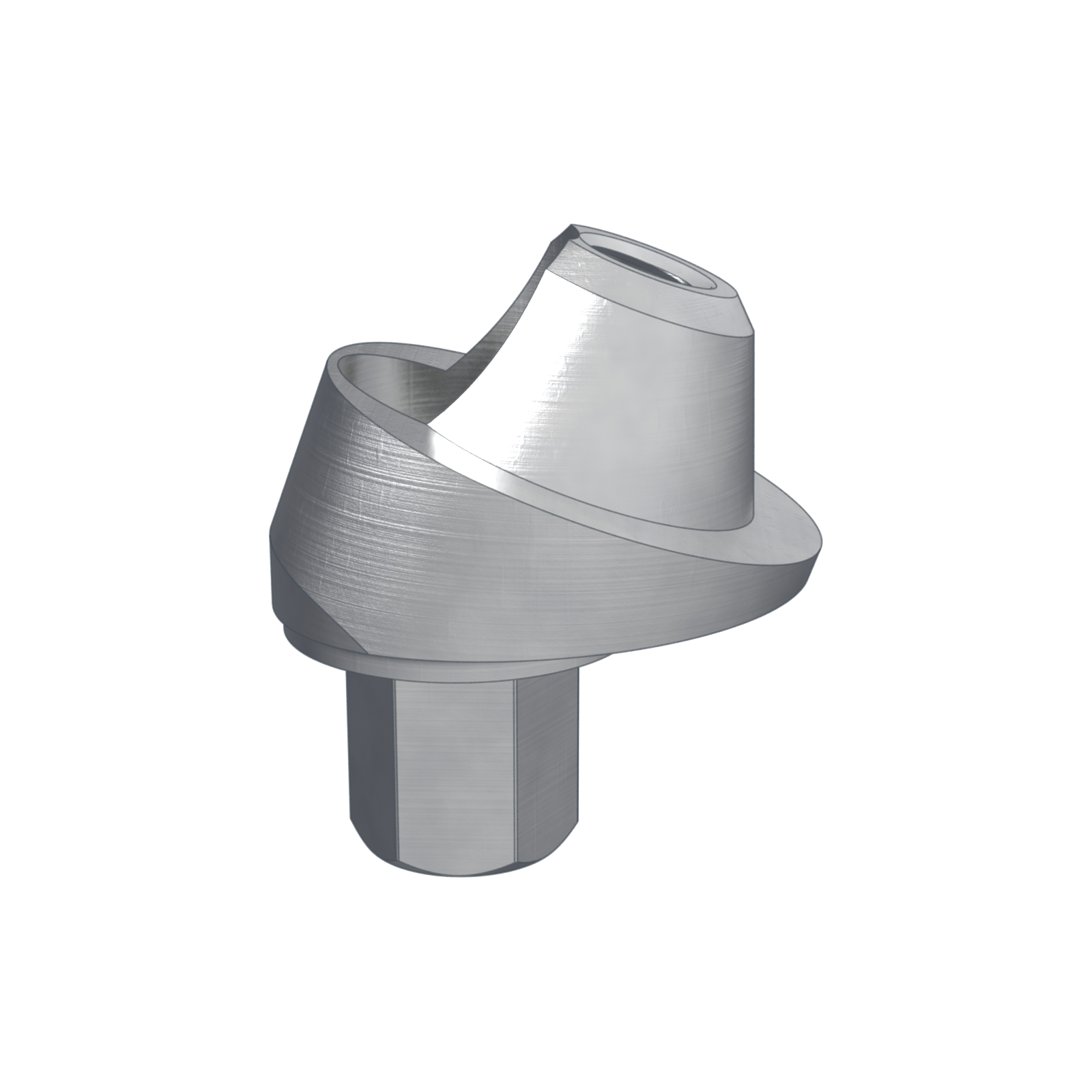

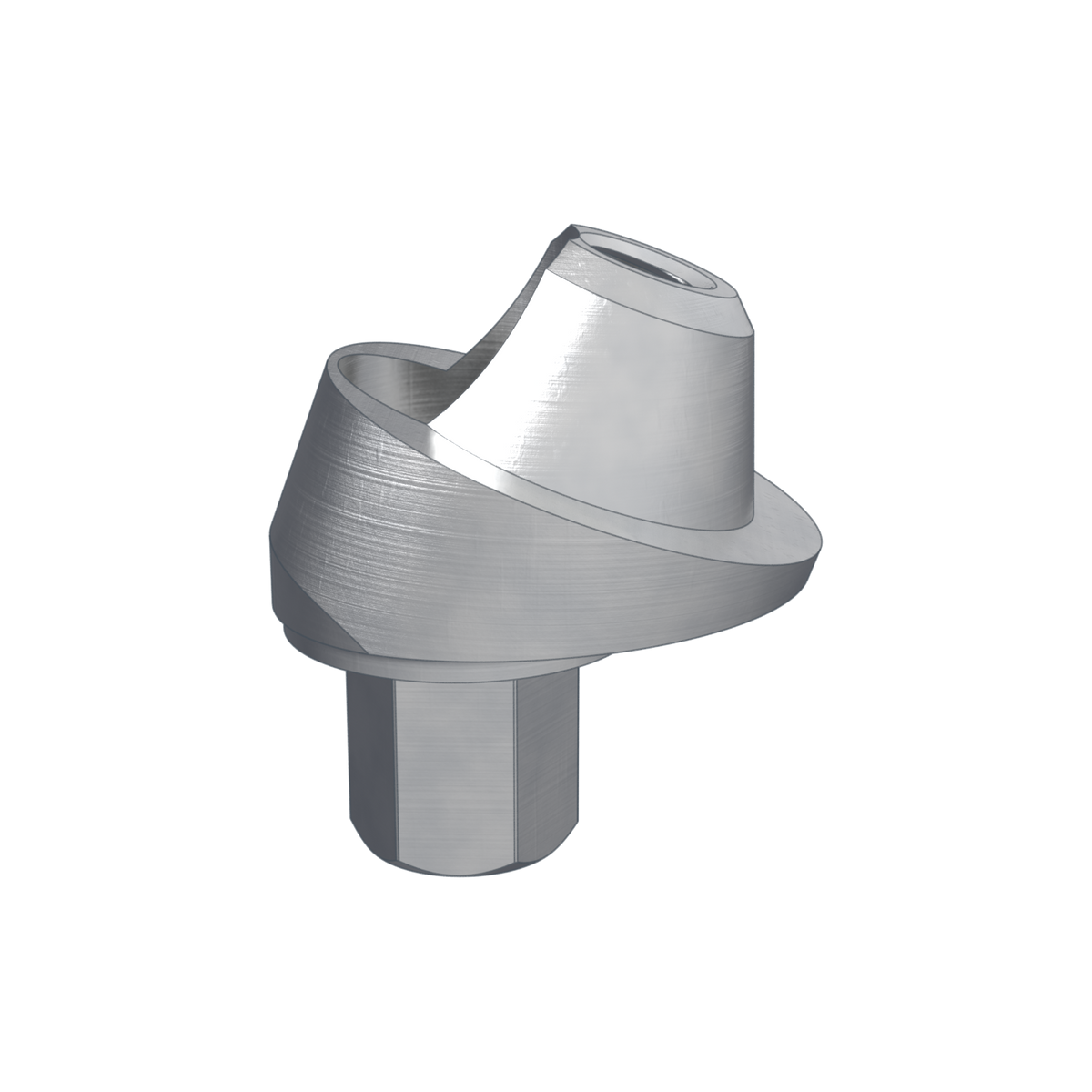

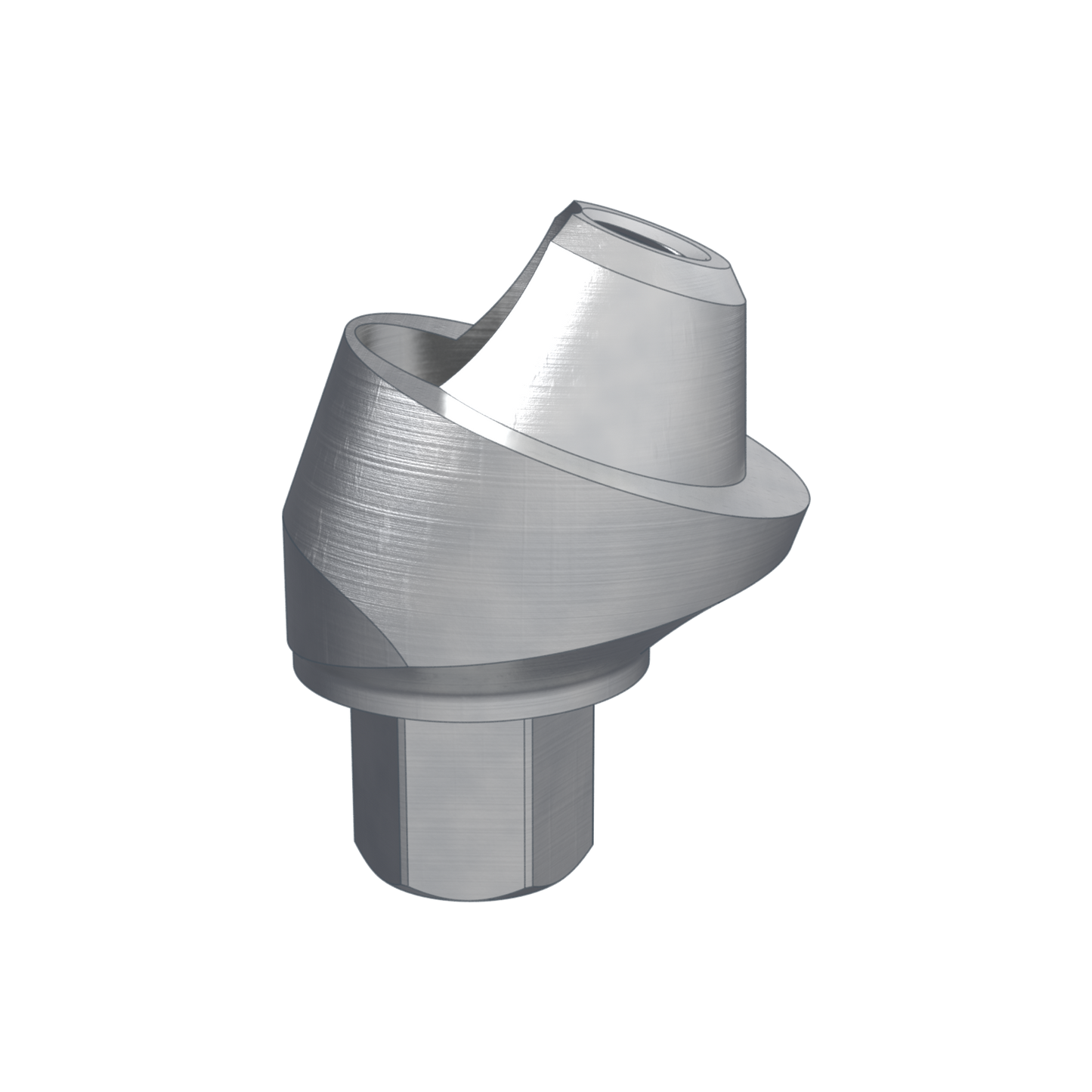

BIONIKA BIOPLANT, Multi-unit abutment, angled, positioned, wide, LT2, type-B

Brand characteristics

The BIONIKA Bioplant implant system is based on a classic internal hexagonal connection design, providing excellent primary stability and long-term biomechanical reliability.

Its precise fit and optimized thread structure ensure even load distribution, reducing bone stress and promoting rapid osseointegration.

The implant’s design supports stable soft tissue closure and facilitates highly aesthetic prosthetic outcomes.

The system is compatible with several widely used implant platforms, including:

• Amelo®
• OT Medical®
• Pitt-Easy®
• Symplant®

The Bioplant offers a dependable and versatile solution for both aesthetic and functional restorative treatments.

Geometry characteristics

Angled Multi-Unit Abutment with Type B Orientation for LT2 System, Wide Design, M1.4 Internal Thread

The Multi-unit abutment, angled, positioned, wide, LT2, type-B is a prosthetic abutment designed for connection to implants or intermediate multi-unit bases, offering angular correction in cases where implant axes are not ideally aligned. Its wide profile enhances support for soft tissues and final restorations, particularly in the posterior region.

The Type B position-oriented design ensures that a specific apex of the connection interface always aligns in the same orientation relative to the top of the abutment. This precise orientation is essential for screw-retained restorations involving multiple implants, where alignment of contours, axes, and margins is critical to both aesthetic and functional outcomes.

The abutment features an M1.4 internal thread at the top, used to secure final prosthetic components such as suprastructures or bridge frameworks. The lower portion connects to the LT2 multi-unit platform without the need for a screw, ensuring a stable, geometry-based fit.

Main Advantages:

• Angular correction: Compensates for suboptimal implant angulations.
• Position-oriented design (Type B): A specific apex consistently aligns upon reinsertion.
• Wide profile: Provides greater support and stability for restorations in posterior zones.
• LT2 compatibility: Fully integrates with the corresponding multi-unit platform.
• M1.4 internal thread: Allows secure fixation of prosthetic components.
• Biocompatible titanium: Long-term durability, tissue-friendly, and sterilizable material.

Indications:

The Multi-unit abutment, angled, positioned, wide, LT2, type-B is an excellent solution for screw-retained restorations on multiple implants, where angular correction, stable support, precise orientation, and full compatibility with the LT2 system are required.

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
