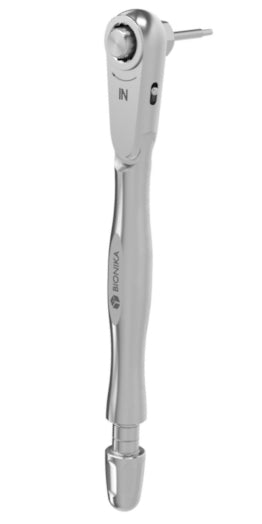

BIONIKA Ratchet torque wrench

The ratchet torque wrench is used to tighten and insert screws and implants. Using a pre-set torque, this prevents the implant from fracturing and ensures the optimum power transfer when inserting the implant. The scale of the torque ranges from 15 to 35 Ncm. The torques can be adjusted from 15 Ncm to the desired scale.

When the ratchet torque wrench adjuster is screw bolted to the stop, the wrench of the torque can be infinite, so it can also be used to produce a much greater torque than the torque shown on the scale, as needed.

Main characteristics

• ERGONOMIC CONSTRUCTION
• RELIABLE LIFETIME
• PRECISE TORQUE CONTROL
• STAINLESS STEEL
• SOUND SIGNAL
• REPLACABLE KEY INTERLINE
• STABLE TORQUE SCALE DURING USE
• PROFESSIONAL QUALITY

Applications of Ratchet torque wrench

Abutments and screws		Screwdrivers	Torque
Locking screw			Manual screwdriver  5-10 Ncm
Healing screw
Impression coping screw for open and closed tray
Impression coping for open and closed tray
Head screw			Ratchet torque wrench Suggested torque for screws: M1.4 screw: 15 Ncm M1.6 screw: 20 Ncm M1.8 screw: 25 Ncm M2.0 screw: 30 Ncm
Universal head, conical
Universal head, oblique
Anatomical head, straight
Anatomical head, oblique
Titanium base
Multi-unit head, through-bolted
Multi-unit head screw
SR head screw
Multi-unit head, screwable
SR head, screwable
Ball head
Locator head
