BIONIKA, Locator cap set
BIONIKA, Locator cap set
SKU:701.324.000.000
UDI: 5993220957122
Available
Couldn't load pickup availability
The locator-style retention system provides a reliable yet user-friendly fixation for removable dentures. Color-coded retention inserts can be exchanged inside the metal housing depending on the clinical situation — implant divergence and the desired retention force. Compared to conventional removable dentures, this solution offers significantly greater stability, allowing for a natural feel during chewing and speaking.

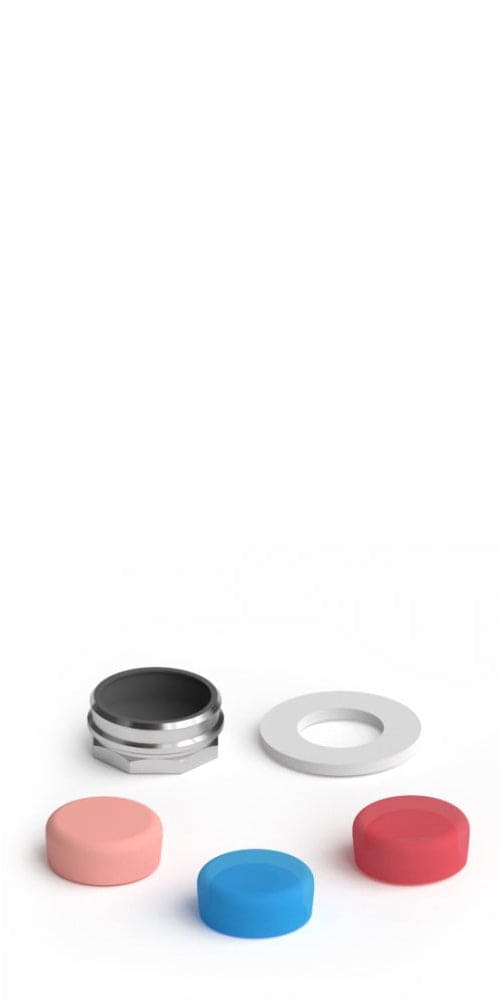

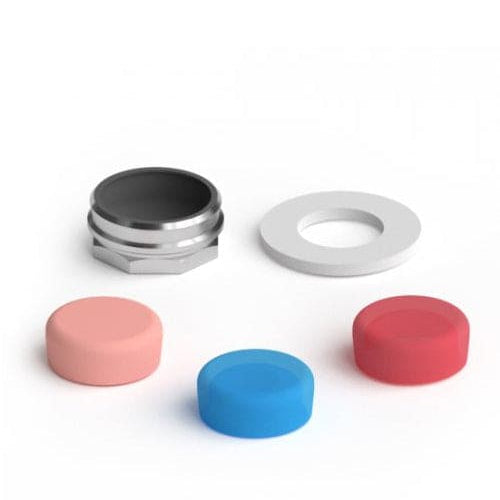

Set contents
Divergence: 10–20° · Retention force: ~3 lbs (1.4 kg)
Strongest retention.
Divergence: 10–20° · Retention force: ~1.5 lbs (0.7 kg)
Softer material, medium retention.
Divergence: 20–40° · Retention force: ~1 lb (0.4 kg)
Softest insert, for higher divergence.
Block-out insert used during impression taking.
Used during laboratory denture fabrication.
Insert selection
For mild-to-moderate divergence (10–20°), start with the pink insert; if the patient finds it too hard to seat or remove the denture, switch to blue. For higher divergence (20–40°), use the red insert — at this angulation, only the softest material allows trouble-free function.
