BIONIKA BIOLEVEL, Multi-unit abutment, angled, positioned, wide, LT2.7, type-A

Brand characteristics

The BIONIKA Biolevel implant system is based on a 90° Cone & Hex connection that ensures a stable, micromovement-free fit and precise force transmission.

When the implant shoulder is placed at or slightly below the cortical level, it promotes bone preservation, while the internal platform-switching design allows the bone to naturally grow over the implant edge.

The spirally micro-grooved, self-locking thread structure optimizes load distribution and facilitates rapid osseointegration. Meanwhile, the anatomical root-shaped body and rounded apex assist in positioning and enhance primary stability.

The Biolevel system is compatible with numerous international implant platforms, including:

• ADIN® Standard®
• Alpha Bio® IH 90°
• CORTEX® Internal Hex Platform
• Dentis®
• MIS® Seven®
• SGS®
• Tri-Vent®
• Zimmer® (Tapered Screw Vent®)

This broad compatibility enables BIONIKA Biolevel implants to integrate seamlessly into various clinical systems, while maintaining the hallmark Hungarian precision and long-term reliability.

Geometry characteristics

Angled, Position-Oriented Multi-Unit Abutment for LT2.7 System, Wide Design with M1.6 Internal Thread

The Multi-unit abutment, angled, positioned, wide, LT2.7, type-A is a prosthetic abutment designed for connection to an implant or intermediate multi-unit base. Developed specifically for screw-retained restorations, the angled design allows correction of the divergence between the implant axis and the final restoration axis, while the wide profile offers enhanced support for soft tissues and prosthetics, especially in posterior regions.

The Type A position-oriented interface ensures that a defined flat surface of the connection consistently aligns with the same position relative to the top of the abutment during each reinsertion. This precise orientation supports optimal alignment of prosthetic components, which is especially important in multi-implant bridges and full-arch restorations.

The M1.6 internal thread at the top allows secure attachment of final prosthetic components such as bridge frameworks or screw-retained restorations. The lower part connects to the LT2.7 platform with a non-screw-based friction-fit geometry.

Main Advantages:

• Angular correction: Allows compensation for implant axis misalignment.
• Type A orientation: The flat surface of the connection always aligns to the same position.
• Wide design: Provides additional support for restorations in posterior zones.
• LT2.7 compatibility: Fully integrated with the appropriate system platform.
• M1.6 internal thread: Enables secure fixation of prosthetic components.
• Biocompatible titanium: Safe, sterilizable, and tissue-friendly material for long-term use.

Indications:

The Multi-unit abutment, angled, positioned, wide, LT2.7, type-A is an ideal solution for screw-retained restorations supported by multiple implants, particularly when angular correction, increased stability, and precise orientation are required in full compatibility with the LT2.7 system.

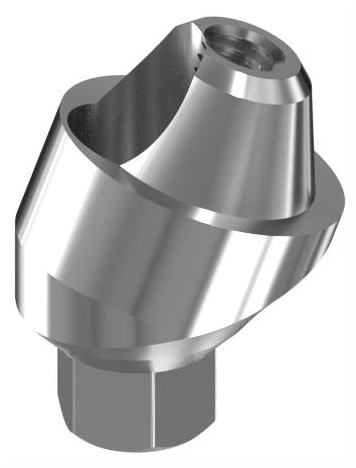

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
