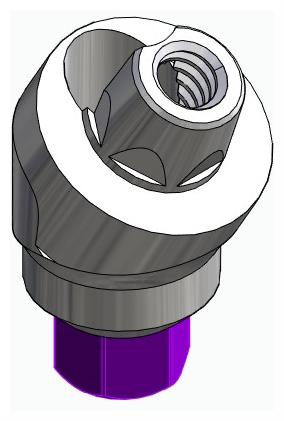

BIONIKA BIOLEVEL, Multi-unit abutment, angled, positioned, narrow, LT2.7, type-B

Brand characteristics

The BIONIKA Biolevel implant system is based on a 90° Cone & Hex connection that ensures a stable, micromovement-free fit and precise force transmission.

When the implant shoulder is placed at or slightly below the cortical level, it promotes bone preservation, while the internal platform-switching design allows the bone to naturally grow over the implant edge.

The spirally micro-grooved, self-locking thread structure optimizes load distribution and facilitates rapid osseointegration. Meanwhile, the anatomical root-shaped body and rounded apex assist in positioning and enhance primary stability.

The Biolevel system is compatible with numerous international implant platforms, including:

• ADIN® Standard®
• Alpha Bio® IH 90°
• CORTEX® Internal Hex Platform
• Dentis®
• MIS® Seven®
• SGS®
• Tri-Vent®
• Zimmer® (Tapered Screw Vent®)

This broad compatibility enables BIONIKA Biolevel implants to integrate seamlessly into various clinical systems, while maintaining the hallmark Hungarian precision and long-term reliability.

Geometry characteristics

Angled, Position-Oriented Multi-Unit Abutment for LT2.7 System, Narrow Design with M1.6 Internal Thread

The Multi-unit abutment, angled, positioned, narrow, LT2.7, type-B is a prosthetic abutment designed to connect to an implant or intermediate multi-unit base. It provides angular correction, particularly useful in cases where implants are not inserted parallel to one another. Its narrow design is especially advantageous in anterior regions or tight interproximal spaces, where aesthetics and space efficiency are critical.

The Type B position-orientation ensures that a specific point of the connection surface always aligns in the same direction relative to the top of the abutment upon reinsertion. This allows for accurate orientation and consistent seating, which is essential in screw-retained restorations on multiple implants.

The M1.6 internal thread is located at the top of the abutment, enabling the fixation of various prosthetic components such as bridge frameworks or custom restorations. The lower connection is designed to fit the LT2.7 platform geometry without a retaining screw.

Main Advantages:

• Angular correction: Aligns implant axes with prosthetic orientation.
• Type B orientation: A defined point of the interface aligns consistently upon reinsertion.
• Narrow design: Ideal for use in narrow spaces and the aesthetic zone.
• LT2.7 compatibility: Precisely fits the corresponding multi-unit platform.
• M1.6 internal thread: Suitable for securing screw-retained prosthetic components.
• Biocompatible titanium: Durable, sterilizable, and safe for clinical use.

Indications:

The Multi-unit abutment, angled, positioned, narrow, LT2.7, type-B is the ideal solution for screw-retained restorations on multiple implants when angular correction, narrow profile, and reliable orientation are required along with full compatibility with the LT2.7 platform.

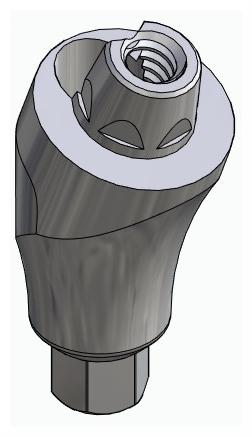

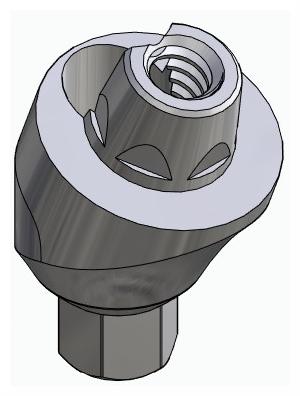

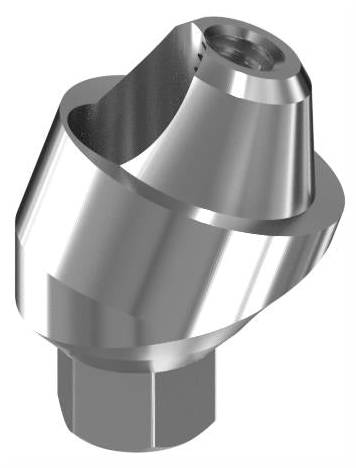

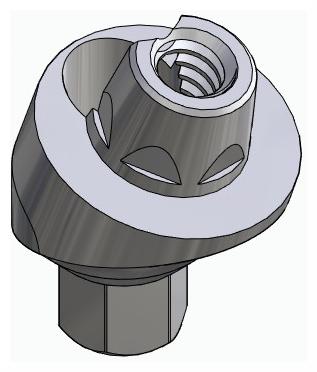

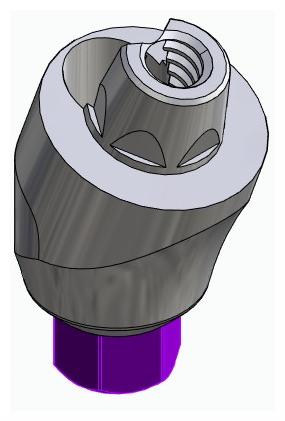

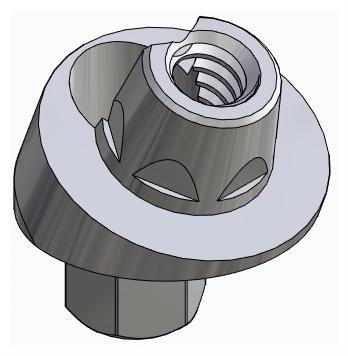

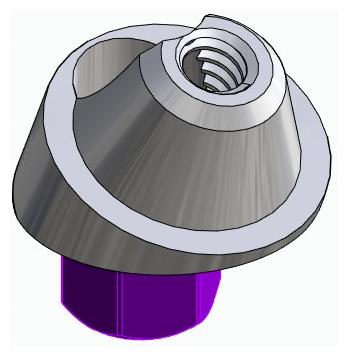

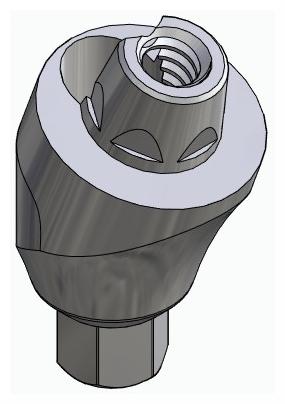

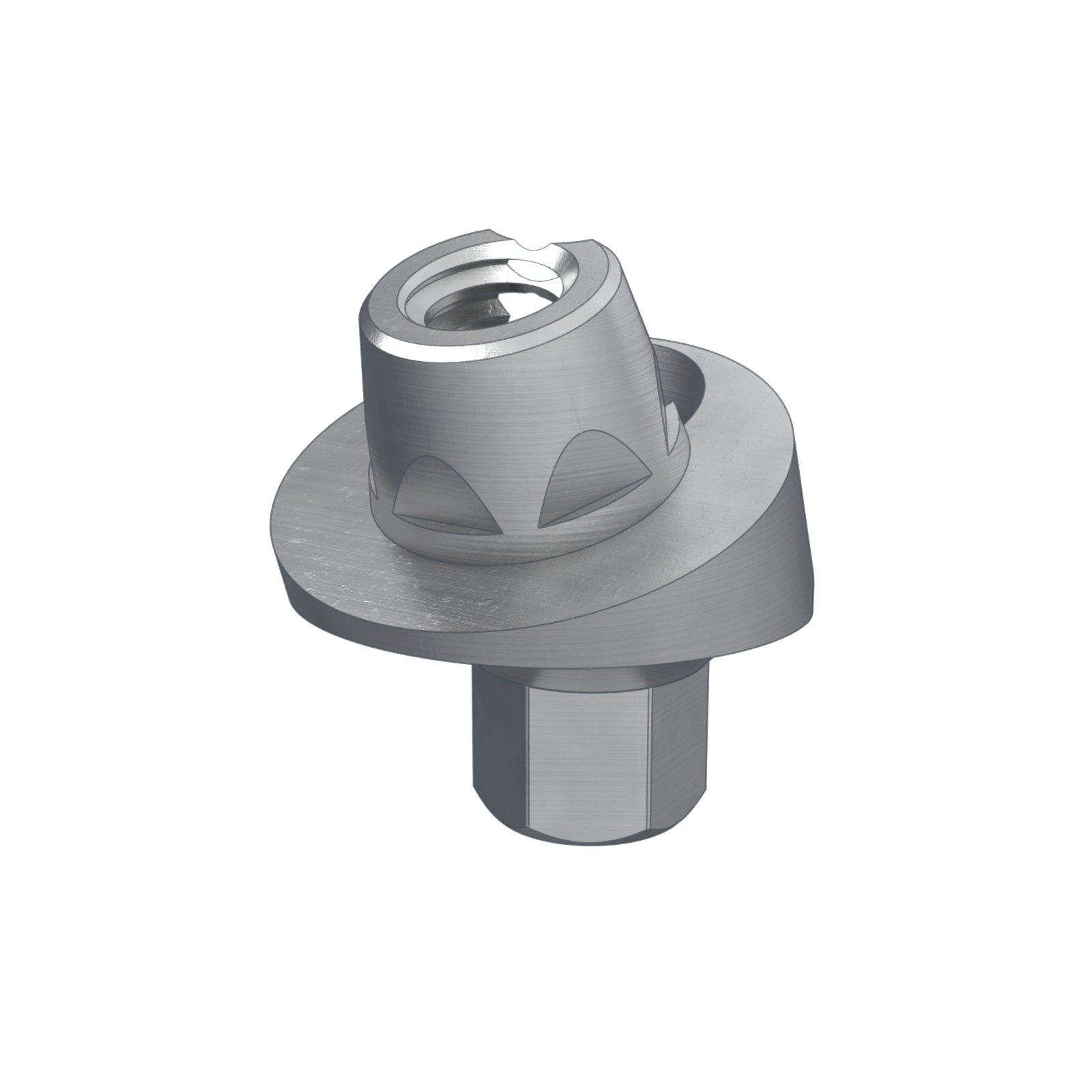

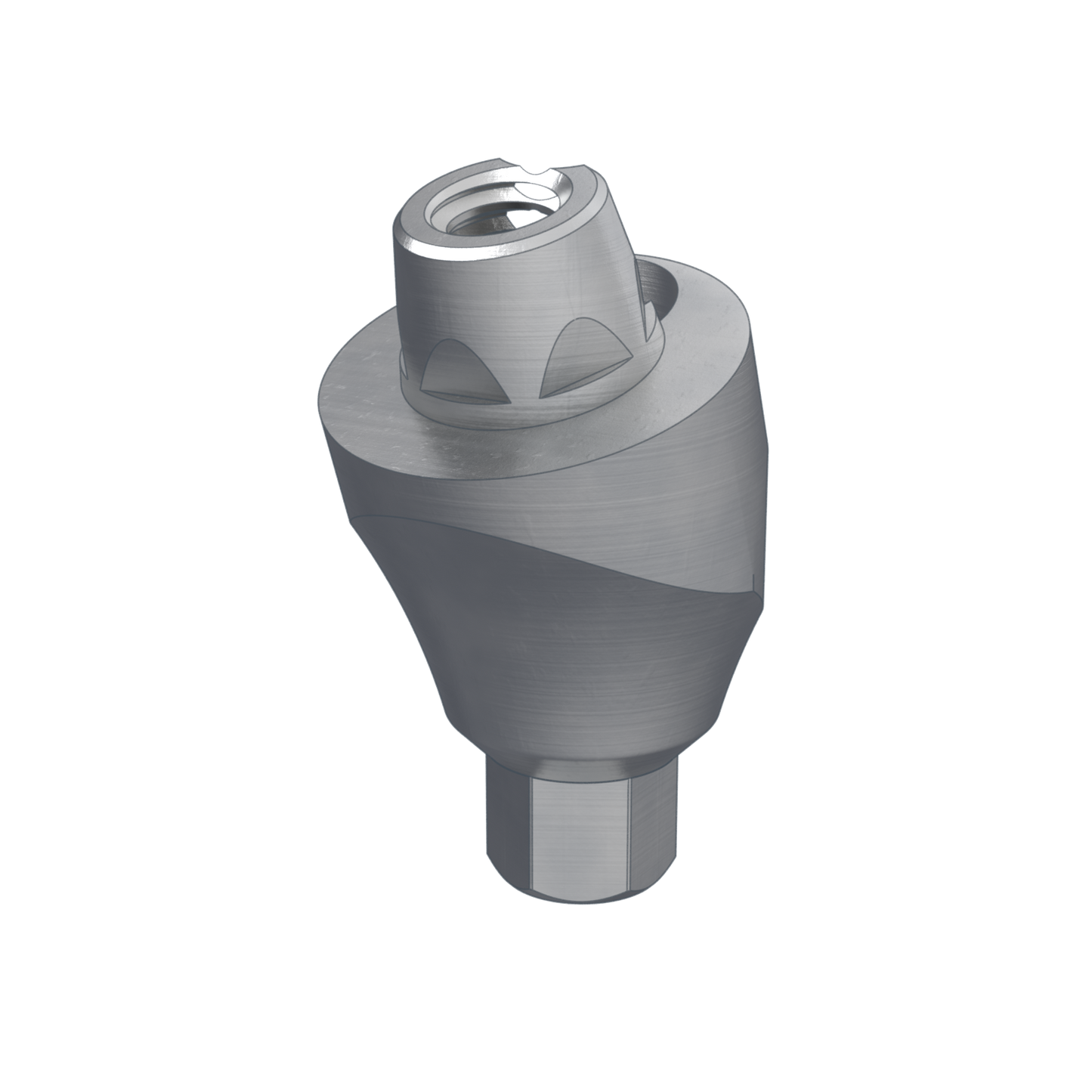

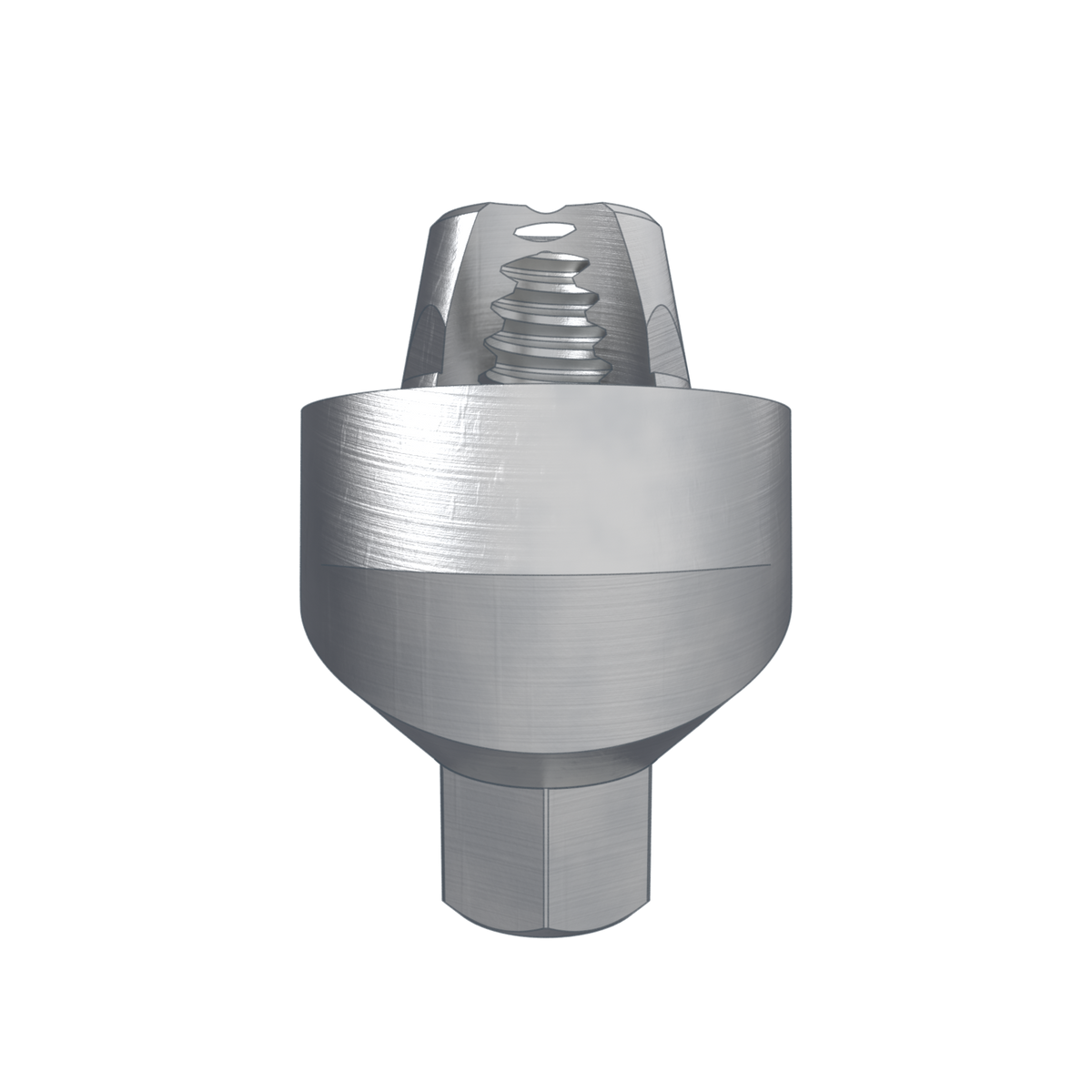

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
