BIONIKA AS, Multi-unit abutment, straight with through screw, positioned, narrow

Brand characteristics

The BIONIKA AS implant system is compatible with the Astra Tech® OsseoSpeed® TX platform and features an advanced conical connection combined with a hexagonal interface that ensures micromovement-free and stable load transfer.

The 30° cone angle directs forces deep into the implant body, reducing bone stress and promoting long-term bone preservation.

The spirally micro-grooved, self-locking thread structure provides strong engagement in the cortical layer, while the self-compressing and self-cutting thread profile ensures excellent primary stability in the spongy bone zone.

The platform switching design supports the natural closure of soft tissues around the implant shoulder, contributing to the formation of an aesthetic gingival contour.

With its anatomical root-shaped design, rounded apex, and bone-condensing thread geometry, the AS system is an ideal solution for both immediate and delayed loading procedures.

Geometry characteristics

Narrow Profile, Indexed Multi-Unit Abutment for Transversal Screw Retained Restorations

The Multi-unit abutment, straight with through screw, positioned, narrow is a prosthetic adapter designed to connect to an implant or a multi-unit base, primarily intended for bridge restorations or full-arch, screw-retained prosthetics. Its straight and narrow design makes it particularly advantageous in areas with limited space or in the aesthetic zone, where both function and appearance are critical.

The indexed design ensures that the abutment always reconnects in the same orientation to the multi-unit interface. This enables precise repositioning of prosthetic components and enhances the reliability of the fit—especially important in multi-unit bridges or full-arch restorations. The transversal screw retention allows the final prosthesis to be screw-retained without the need for cement.

Main Advantages:

• Narrow profile: Ideal for tight interproximal spaces and aesthetic zones.
• Straight design: Balanced insertion path and easy assembly.
• Indexed connection: Ensures precise and repeatable orientation.
• Transversal screw retention: For screw-retained, cement-free final prostheses.
• Compatible with multi-unit systems: Provides a stable and reliable prosthetic interface.
• Biocompatible titanium: Sterilizable, long-term use, and tissue-friendly material.
• The product includes the fixation screw.

Indications:

The Multi-unit abutment, straight with through screw, positioned, narrow is the ideal solution for screw-retained bridge restorations supported by multiple implants, where a narrow profile, accurate fit, and repeatable orientation are essential.

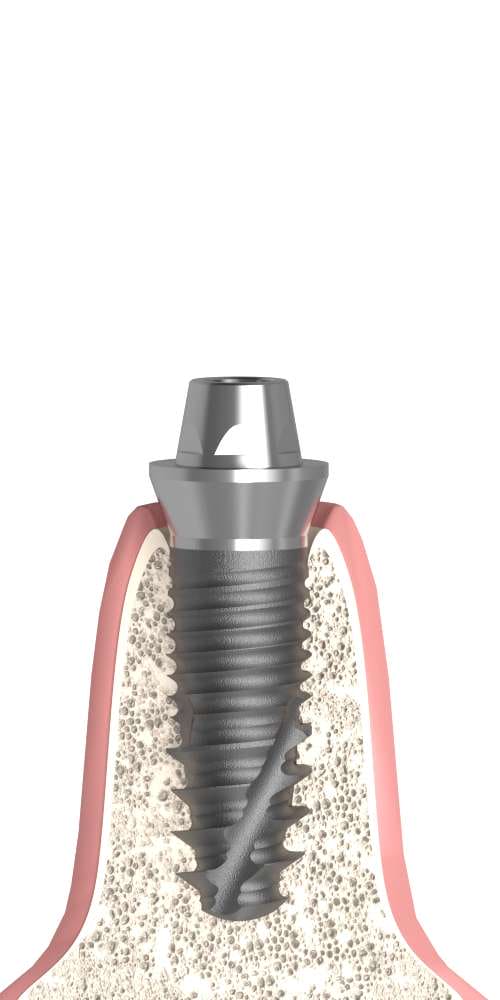

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
