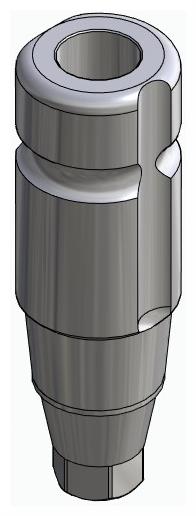

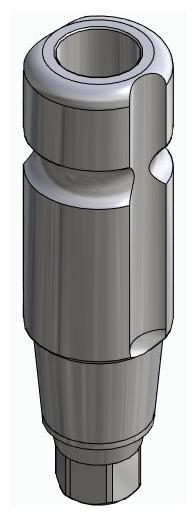

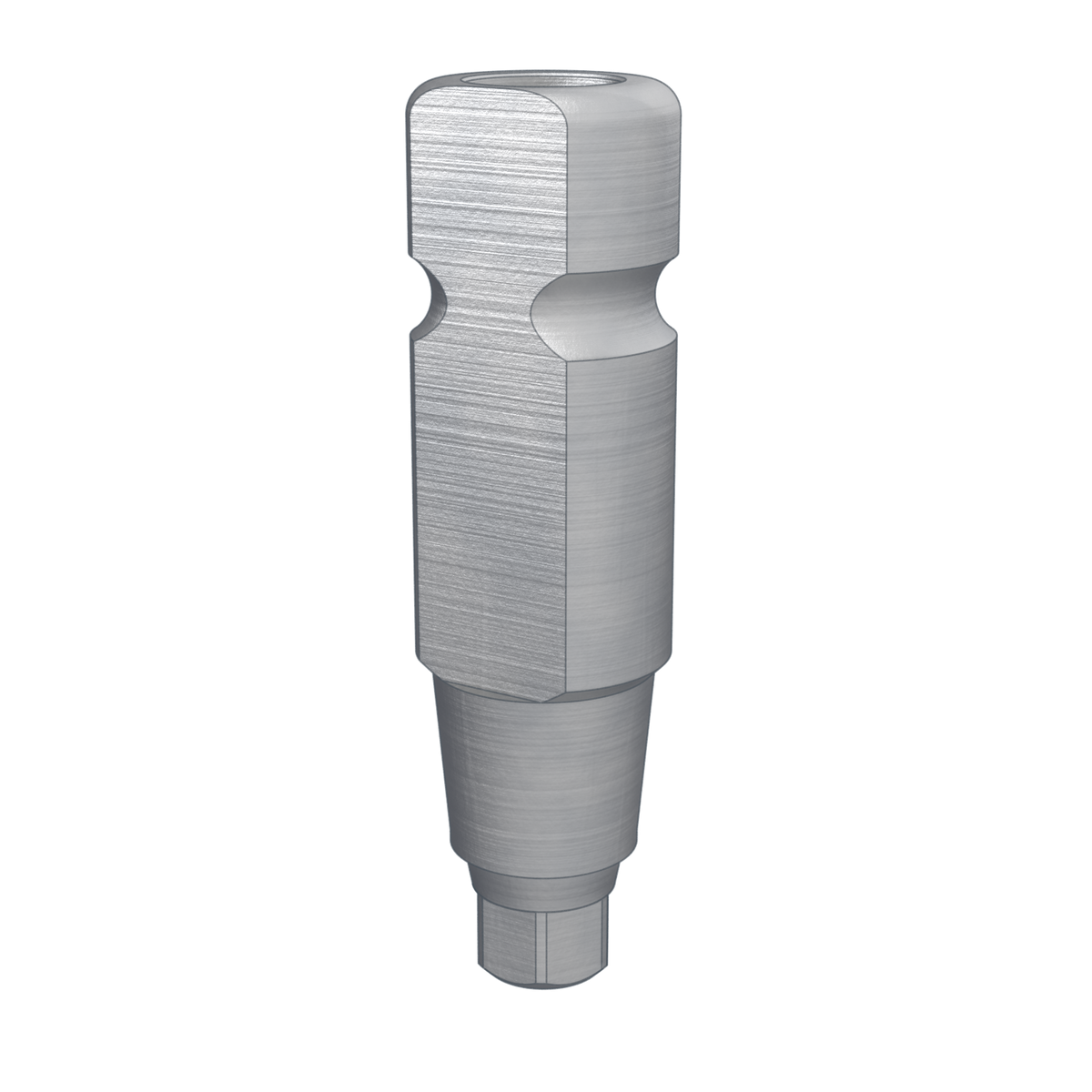

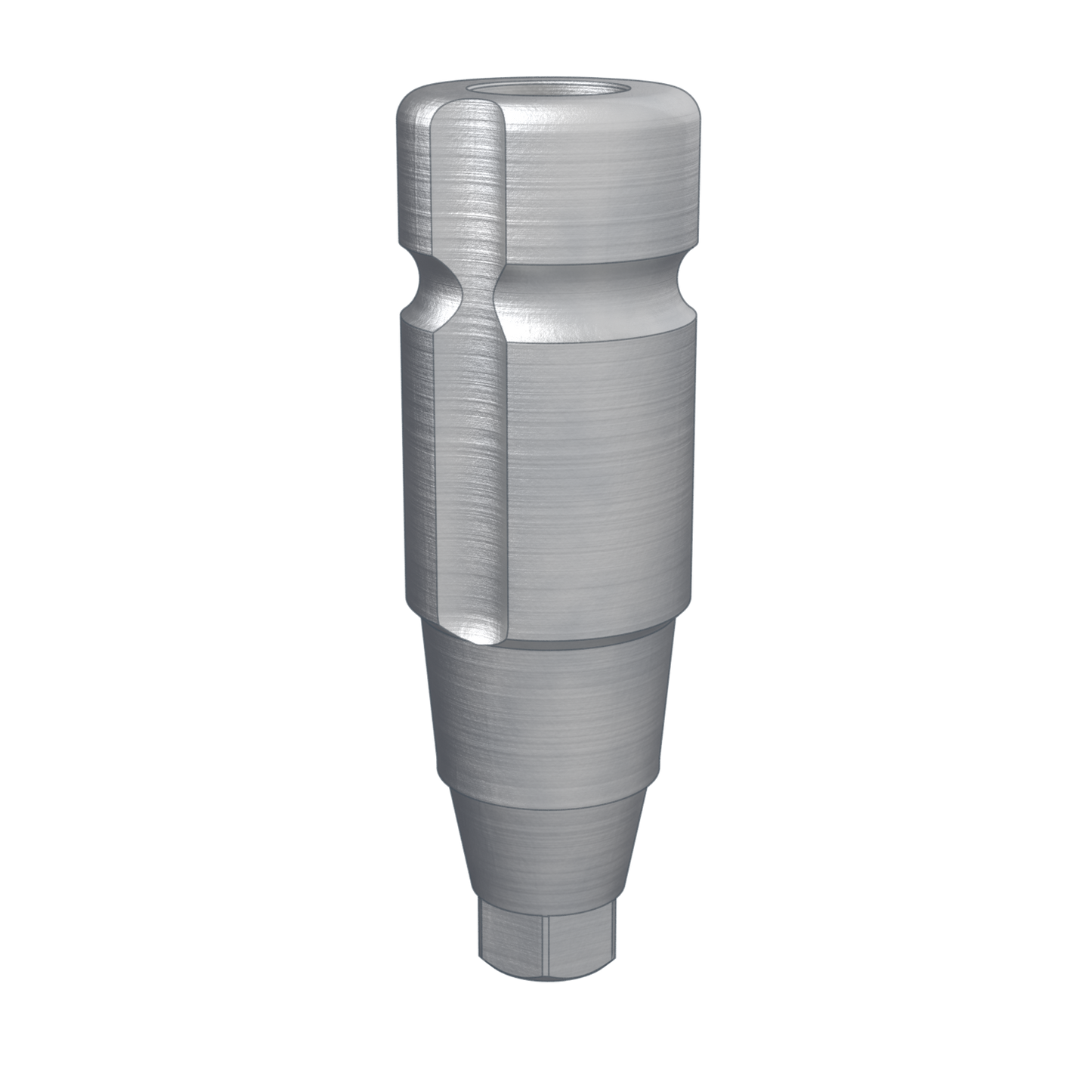

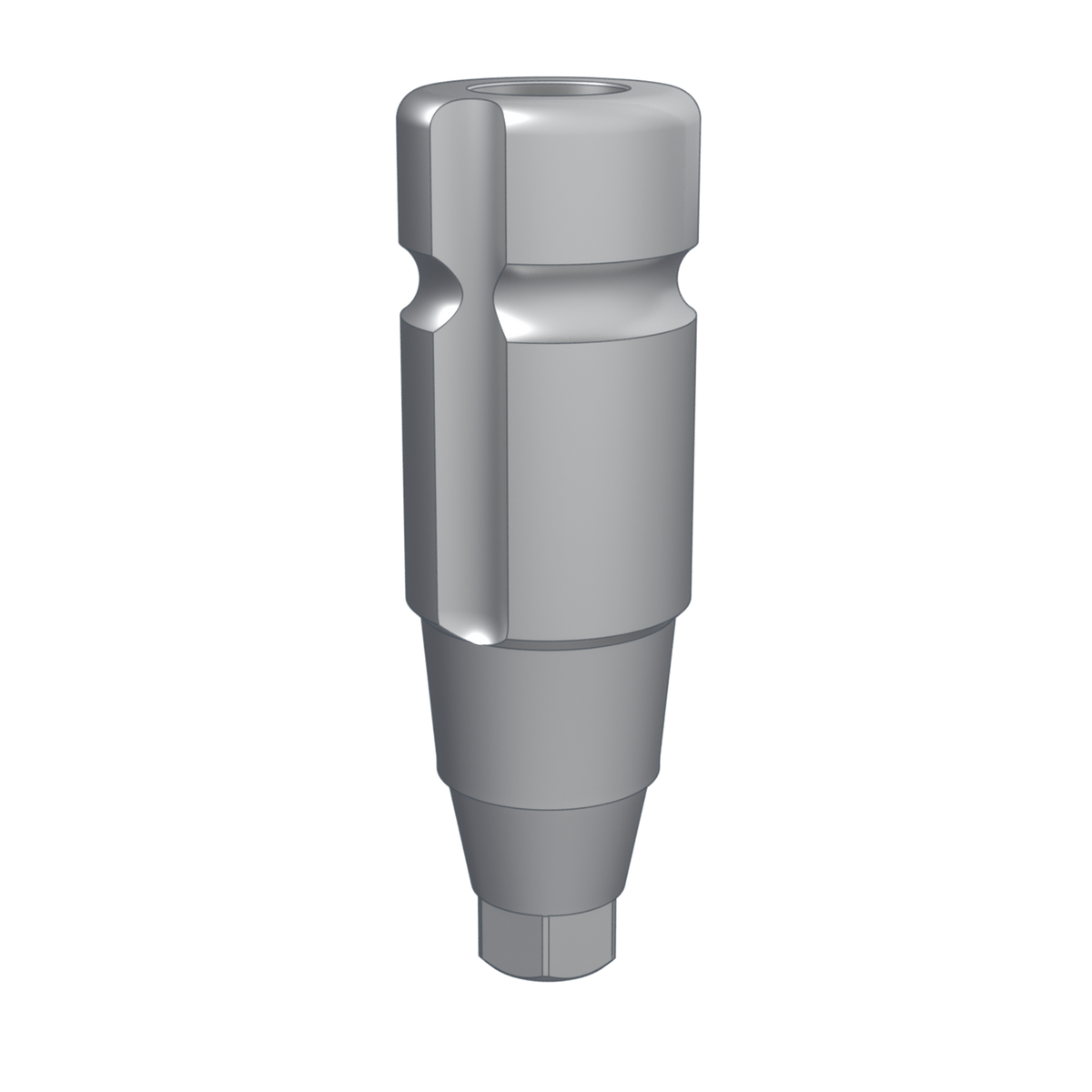

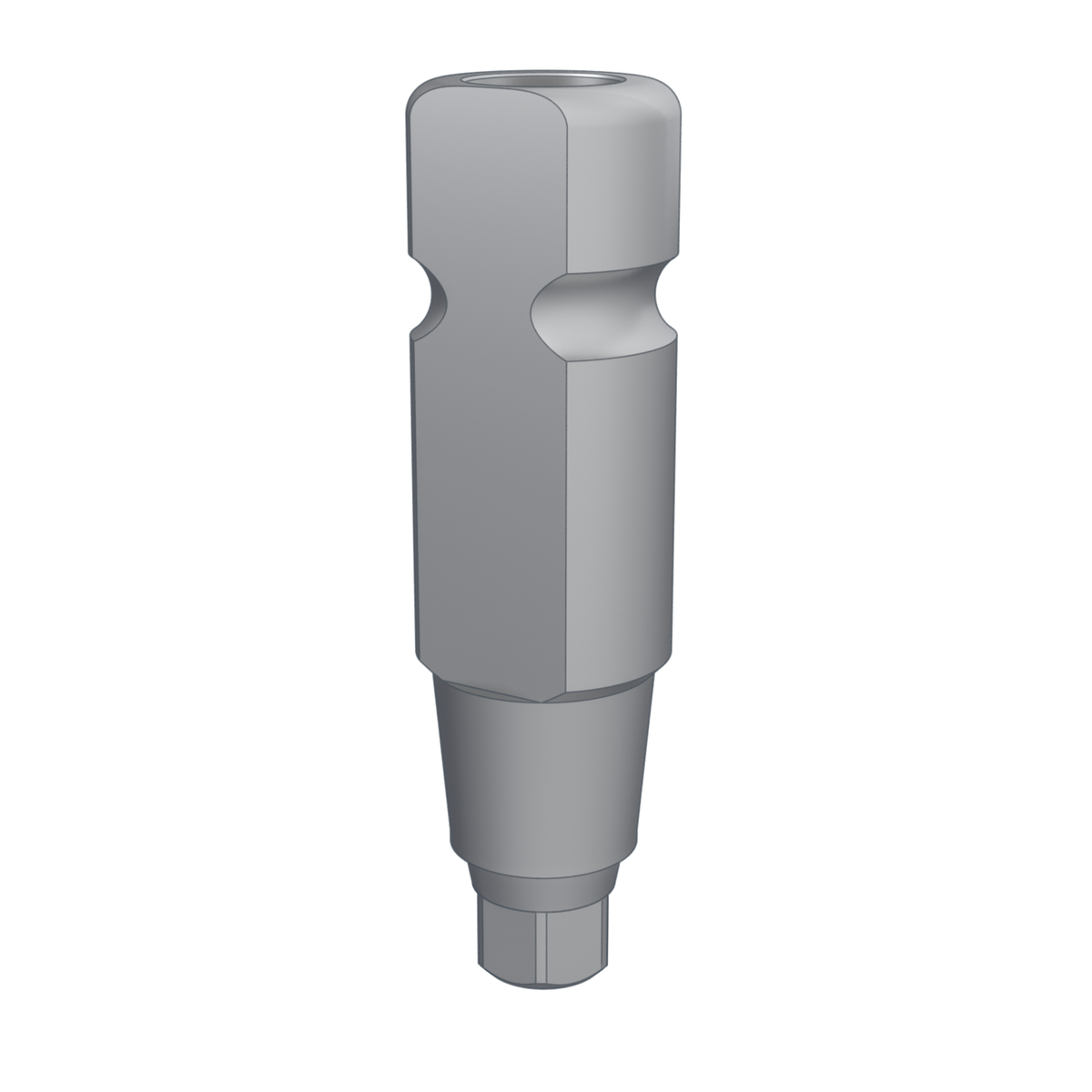

BIONIKA AS, Impression coping for closed tray, parallel, positioned

Brand characteristics

The BIONIKA AS implant system is compatible with the Astra Tech® OsseoSpeed® TX platform and features an advanced conical connection combined with a hexagonal interface that ensures micromovement-free and stable load transfer.

The 30° cone angle directs forces deep into the implant body, reducing bone stress and promoting long-term bone preservation.

The spirally micro-grooved, self-locking thread structure provides strong engagement in the cortical layer, while the self-compressing and self-cutting thread profile ensures excellent primary stability in the spongy bone zone.

The platform switching design supports the natural closure of soft tissues around the implant shoulder, contributing to the formation of an aesthetic gingival contour.

With its anatomical root-shaped design, rounded apex, and bone-condensing thread geometry, the AS system is an ideal solution for both immediate and delayed loading procedures.

Geometry characteristics

Parallel-Walled, Indexed Impression Coping for Closed Tray Technique

The Impression coping for closed tray, parallel, positioned is an implant-level component specifically designed for accurate and stable impressions using the closed tray technique. The parallel-walled geometry enhances the fit and stability of the coping within the impression material, minimizing movement and distortion during removal. This shape is particularly advantageous when high retention and minimal deviation are clinical priorities.

The indexed design ensures that the coping is always repositioned in the exact same predefined orientation on the implant, enabling the precise transfer of spatial positioning to the dental laboratory. This feature is essential in multi-implant restorations where angular discrepancies between implants must be reliably reproduced.

Main Advantages:

• Parallel geometry: Straight walls for enhanced stability and precise fit within the impression material.
• Closed tray compatibility: Easier clinical procedure without removing the coping from the impression tray.
• Indexed connection: Fixed orientation for accurate and repeatable placement.
• Implant-level fit: Reliable, stable connection directly to the implant.
• Biocompatible, precision-machined material: Sterilizable and durable for long-term use.

Indications:

The Impression coping for closed tray, parallel, positioned is recommended in all clinical situations requiring highly accurate spatial transfer, particularly in multi-implant restorations with angulated positioning.

The product image is for illustration purposes only; colour and geometry may vary depending on selected specifications.
