BIONIKA AS, Ball abutment, OC, normal

Brand characteristics

The BIONIKA AS implant system is compatible with the Astra Tech® OsseoSpeed® TX platform and features an advanced conical connection combined with a hexagonal interface that ensures micromovement-free and stable load transfer.

The 30° cone angle directs forces deep into the implant body, reducing bone stress and promoting long-term bone preservation.

The spirally micro-grooved, self-locking thread structure provides strong engagement in the cortical layer, while the self-compressing and self-cutting thread profile ensures excellent primary stability in the spongy bone zone.

The platform switching design supports the natural closure of soft tissues around the implant shoulder, contributing to the formation of an aesthetic gingival contour.

With its anatomical root-shaped design, rounded apex, and bone-condensing thread geometry, the AS system is an ideal solution for both immediate and delayed loading procedures.

Geometry characteristics

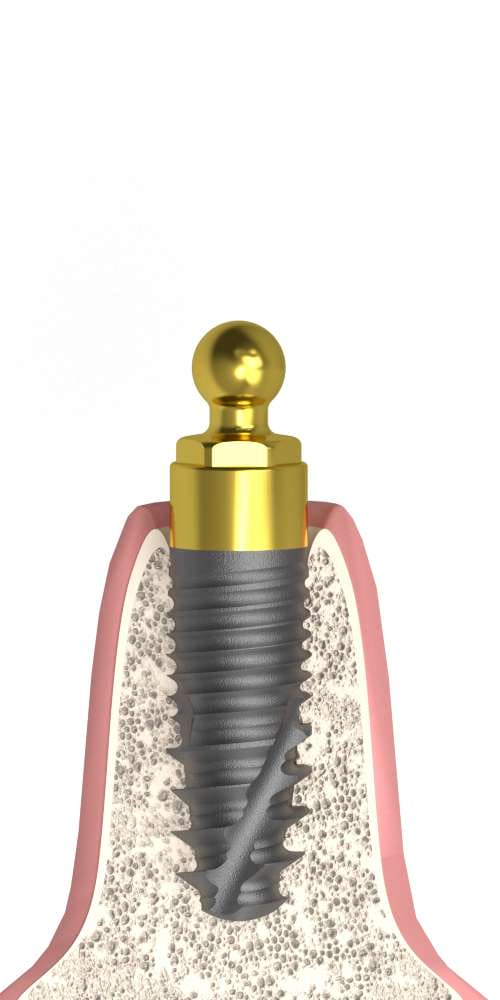

Implant-level ball abutment designed for securing removable dentures with OT-CAP retention

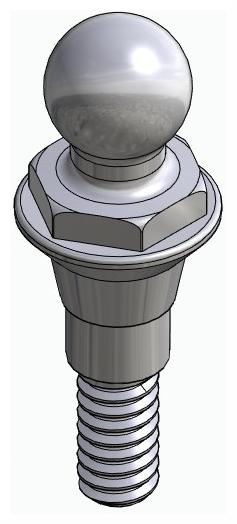

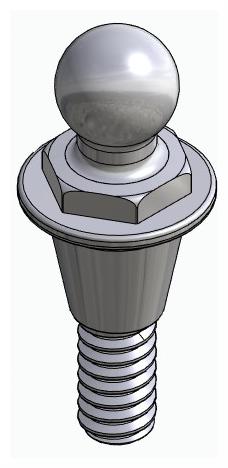

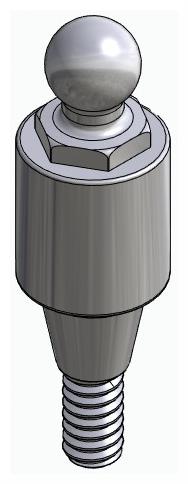

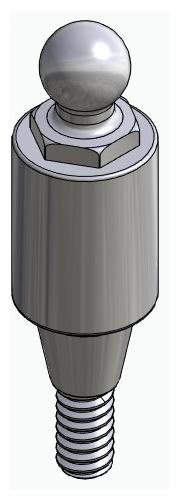

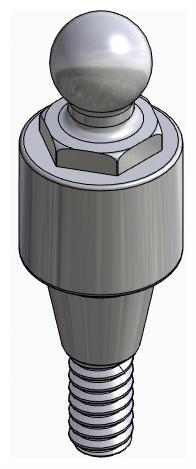

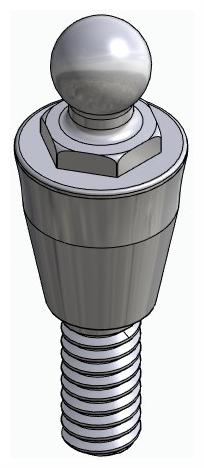

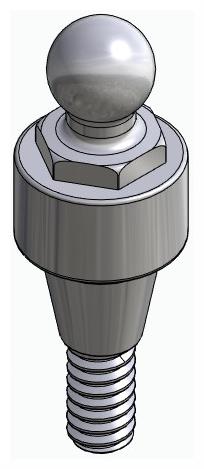

The Ball abutment, OC, normal is an implant-level attachment for removable prostheses, fully compatible with the OT-CAP retention system. The standard version features a 2.5 mm diameter ball head, offering reliable retention for most clinical scenarios and ensuring long-term stability for the denture during daily use.

OC-type ball abutments are used in combination with the OT-CAP system’s specialized plastic matrices, which are designed to fit the ball head precisely. This configuration allows the patient to easily remove and reinsert the prosthesis, while maintaining secure retention throughout daily wear.

Main Benefits:

• Standard ball size (Ø2.5 mm): Excellent retention force and broad clinical applicability.
• OT-CAP compatibility: Proven and user-friendly retention system.
• Implant-level connection: Secure and precise fit with the implant.
• Ideal for removable prostheses: Easy for the patient to manage, yet stable and reliable.
• Biocompatible titanium: Durable, sterilizable, and tissue-friendly material.

Application:

The Ball abutment, OC, normal is an excellent solution for retaining full or partial removable dentures when strong and reliable retention is required, and the implant angulation is suitable for ball attachment use.

The product image is for illustration purposes only. Colour and geometry may vary depending on the selected dimensions.
