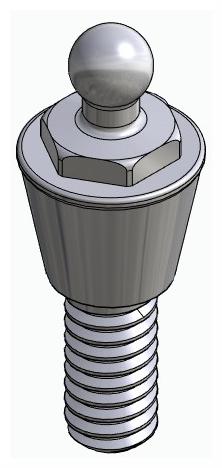

BIONIKA AS, Ball abutment, OC, micro

Brand characteristics

The BIONIKA AS implant system is compatible with the Astra Tech® OsseoSpeed® TX platform and features an advanced conical connection combined with a hexagonal interface that ensures micromovement-free and stable load transfer.

The 30° cone angle directs forces deep into the implant body, reducing bone stress and promoting long-term bone preservation.

The spirally micro-grooved, self-locking thread structure provides strong engagement in the cortical layer, while the self-compressing and self-cutting thread profile ensures excellent primary stability in the spongy bone zone.

The platform switching design supports the natural closure of soft tissues around the implant shoulder, contributing to the formation of an aesthetic gingival contour.

With its anatomical root-shaped design, rounded apex, and bone-condensing thread geometry, the AS system is an ideal solution for both immediate and delayed loading procedures.

Geometry characteristics

Implant-level abutment for securing removable dentures with OT-CAP retention

The Ball abutment, OC, micro is an implant-level attachment designed for removable prostheses, fully compatible with the OT-CAP retention system. The "micro" version features a 1.8 mm diameter ball head, making it ideal for limited interarch spaces or cases where smaller retention components are clinically indicated due to anatomical constraints or prosthetic design.

Its OC-type ball configuration ensures a stable yet easily detachable connection via OT-CAP plastic matrices. This allows the patient to insert and remove the denture independently and comfortably, while maintaining reliable long-term retention.

Main Benefits:

• Micro ball size (Ø1.8 mm): Ideal for limited vertical space and low-profile retention requirements.
• OT-CAP compatible: Integrates seamlessly with a well-established retention system.
• Secure yet removable: Ensures comfort and convenience for the patient.
• Implant-level connection: Direct attachment to the implant with simplified placement.
• Biocompatible titanium: Durable, tissue-friendly, and sterilizable material.

Application:

The Ball abutment, OC, micro is particularly recommended for the retention of full or partial removable dentures in cases where space is limited or a low-profile ball head is needed due to gingival or prosthetic design considerations.

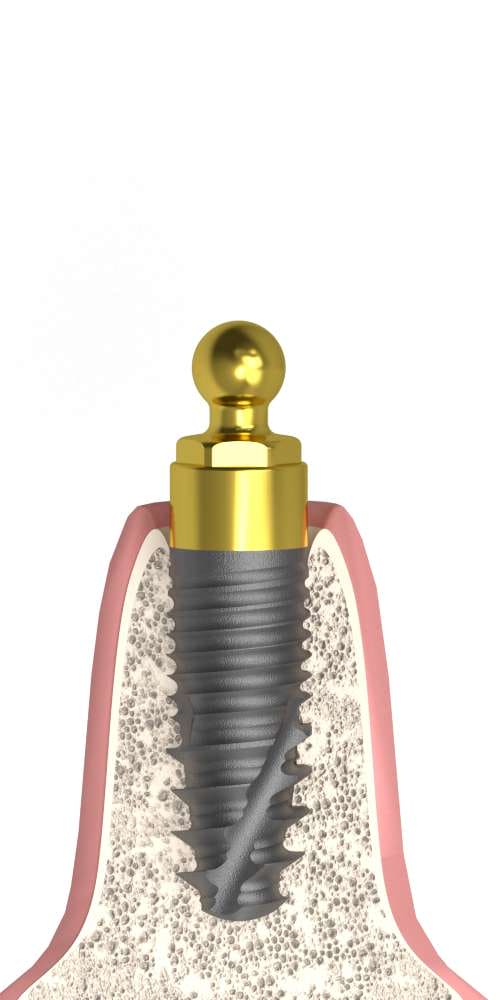

The product image is for illustration purposes only. Colour and geometry may vary depending on the selected dimensions.
