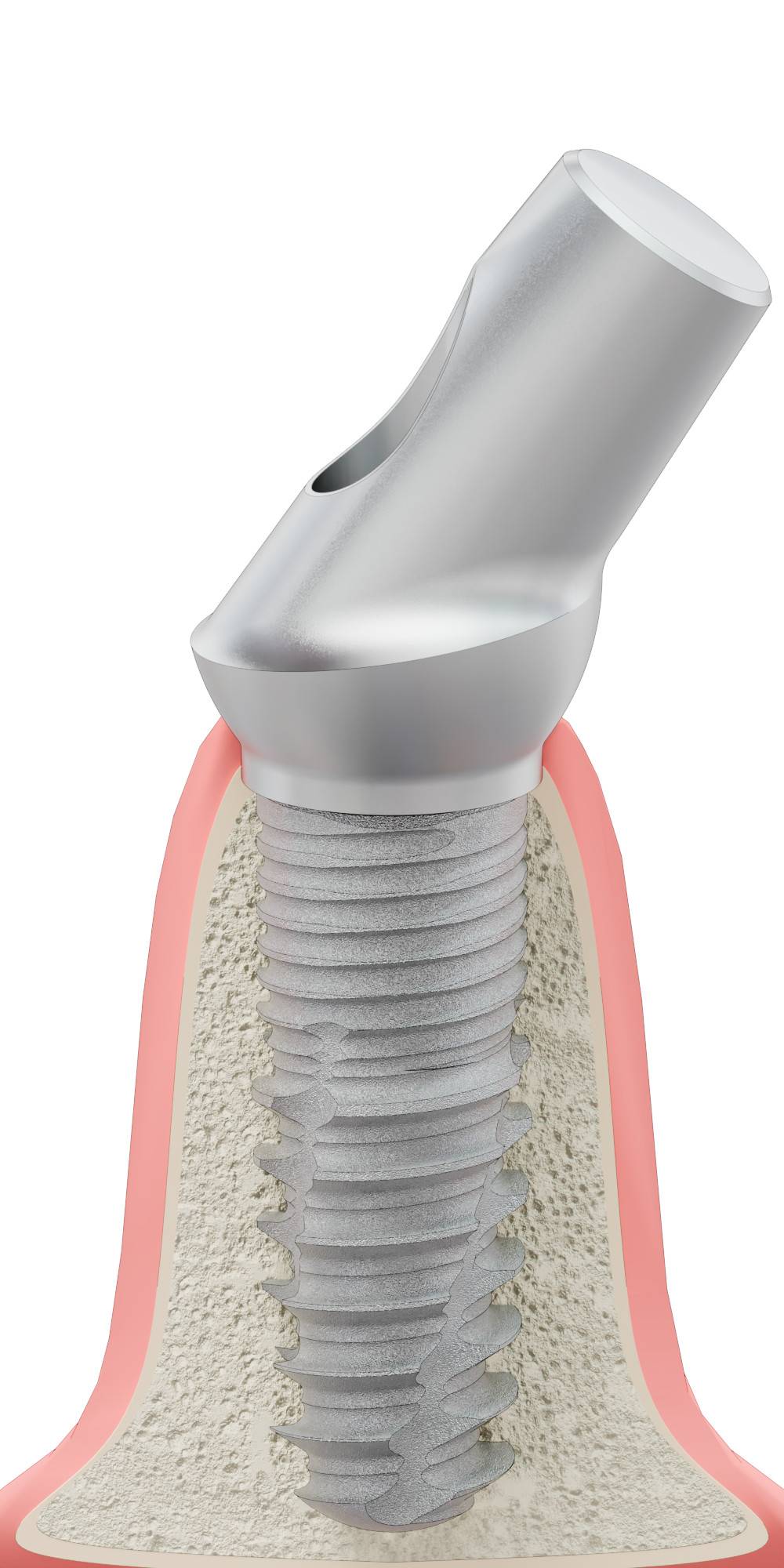

BIONIKA AS, Anatomic abutment, angled, 35°, positioned, type-B

Brand characteristics

The BIONIKA AS implant system is compatible with the Astra Tech® OsseoSpeed® TX platform and features an advanced conical connection combined with a hexagonal interface that ensures micromovement-free and stable load transfer.

The 30° cone angle directs forces deep into the implant body, reducing bone stress and promoting long-term bone preservation.

The spirally micro-grooved, self-locking thread structure provides strong engagement in the cortical layer, while the self-compressing and self-cutting thread profile ensures excellent primary stability in the spongy bone zone.

The platform switching design supports the natural closure of soft tissues around the implant shoulder, contributing to the formation of an aesthetic gingival contour.

With its anatomical root-shaped design, rounded apex, and bone-condensing thread geometry, the AS system is an ideal solution for both immediate and delayed loading procedures.

Geometry characteristics

Customisable Abutment for Advanced Angle Correction with Precise Orientation and Natural Contours

The Anatomic abutment, angled, 35°, positioned, type-B is an implant-level, customisable (grindable) abutment offering an excellent solution for cases where the implant inclination significantly deviates from the desired prosthetic axis. The 35° angulation allows for the correction of non-ideal implant positioning, while the anatomical shape helps to create a natural gingival contour and aesthetic outcome.

The Type B indexing ensures that a specific apex of the connection surface is always aligned in the same direction relative to the top of the abutment. This fixed orientation allows the abutment to return to the exact same position every time, which is critical in multi-implant restorations for achieving a precise fit and consistent aesthetic appearance.

Main Advantages:

• 35° angle correction: Ideal for compensating significant axial deviations.
• Anatomical design: Preformed shape for natural appearance and soft tissue support.
• Indexed orientation (Type B): Fixed apex ensures consistent and accurate repositioning.
• Customisable form: Can be individually shaped in both clinical and laboratory settings.
• Implant-level fit: Stable and reliable connection to the implant.
• Biocompatible titanium: Sterilisable and safe for long-term use.
• The screw is included.

Indications:

The Anatomic abutment, angled, 35°, positioned, type-B is the ideal choice for cases with pronounced angulation where precise repositioning and natural contouring are essential—such as multi-implant restorations in the aesthetic zone.

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
