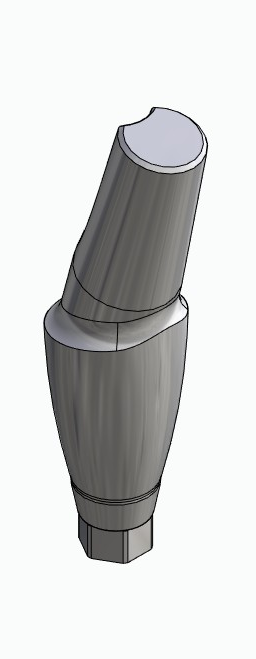

BIONIKA AS, Anatomic abutment, angled, 15°, positioned, type-A

Brand characteristics

The BIONIKA AS implant system is compatible with the Astra Tech® OsseoSpeed® TX platform and features an advanced conical connection combined with a hexagonal interface that ensures micromovement-free and stable load transfer.

The 30° cone angle directs forces deep into the implant body, reducing bone stress and promoting long-term bone preservation.

The spirally micro-grooved, self-locking thread structure provides strong engagement in the cortical layer, while the self-compressing and self-cutting thread profile ensures excellent primary stability in the spongy bone zone.

The platform switching design supports the natural closure of soft tissues around the implant shoulder, contributing to the formation of an aesthetic gingival contour.

With its anatomical root-shaped design, rounded apex, and bone-condensing thread geometry, the AS system is an ideal solution for both immediate and delayed loading procedures.

Geometry characteristics

Angulated, Anatomically Shaped Customisable Abutment with Indexed Orientation

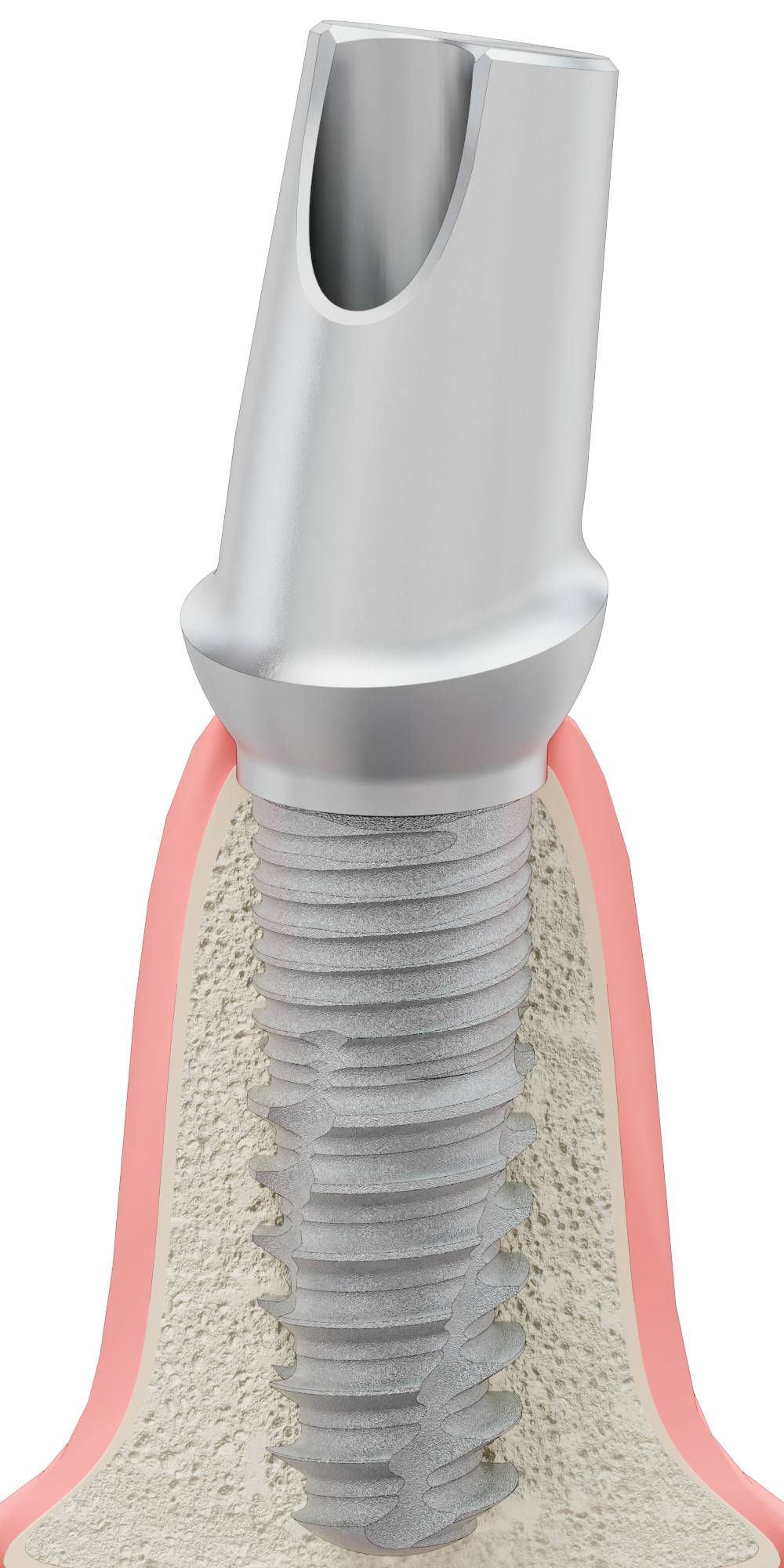

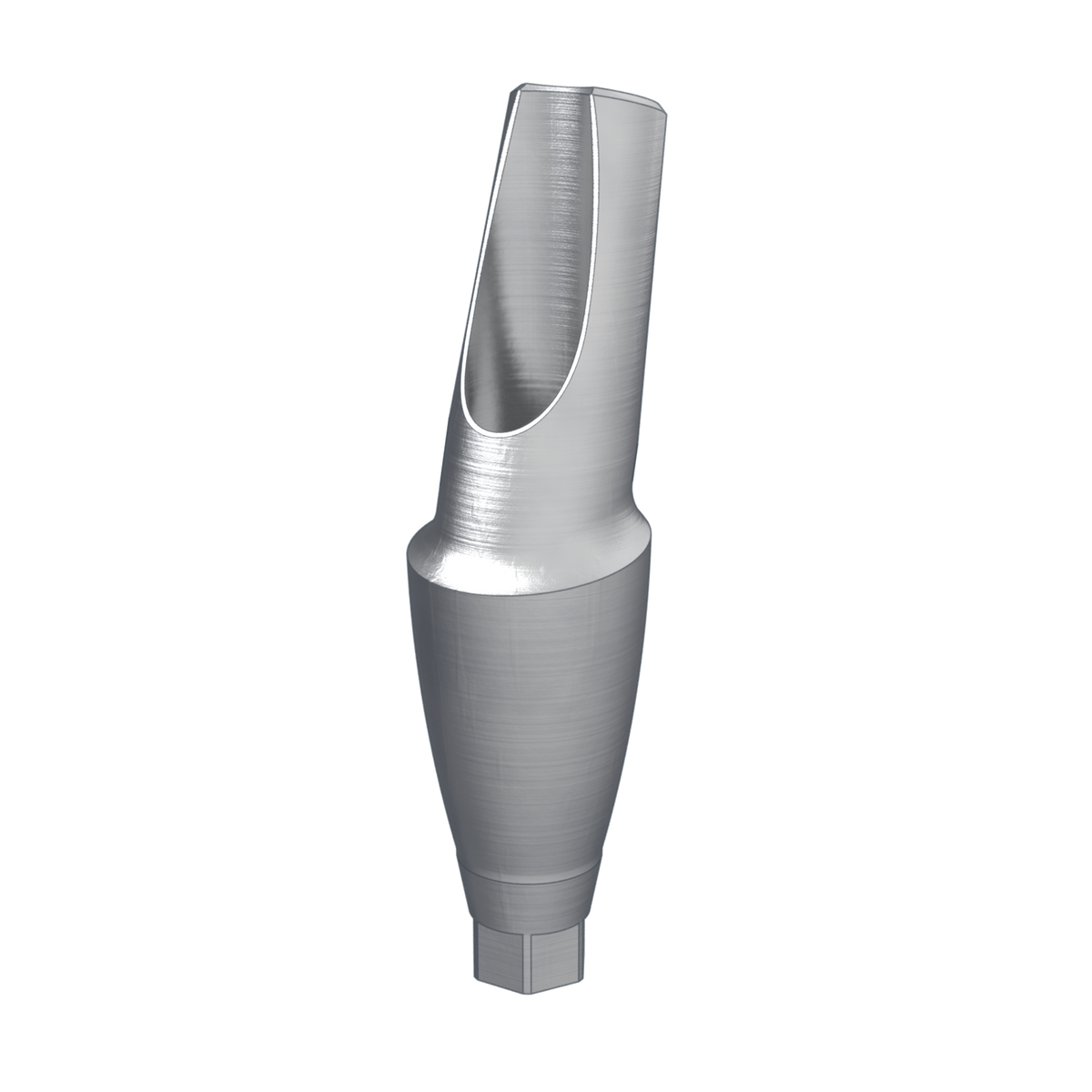

The Anatomic abutment, angled, 15°, positioned, type-A is an implant-level, customisable (grindable) abutment developed for angle correction and prosthetic restorations that follow natural contours. The 15° angulated design enables the correction of non-ideal implant positioning, while the anatomical shape supports the formation of aesthetic and functional soft tissue profiles.

The Type A indexed connection ensures that a defined flat surface of the abutment's connection interface always remains aligned with the same direction relative to the top part of the abutment. This fixed orientation allows for accurate repositioning and coordination of prosthetic components, especially in multi-implant restorations.

Main Advantages:

• 15° angle correction: Enables alignment of the implant and prosthetic axes.
• Anatomical shape: Preformed geometry supports natural gingival contouring.
• Indexed connection (Type A): Defined flat surface ensures precise orientation.
• Customisable design: Suitable for individual adjustment in clinical or laboratory settings.
• Implant-level fit: Stable and precise connection with the implant.
• Biocompatible titanium: Durable, sterilisable, and suitable for long-term use.
• The screw is included.

Indications:

The Anatomic abutment, angled, 15°, positioned, type-A is an excellent choice in cases where a discrepancy exists between the implant axis and the desired prosthetic axis. It is particularly suitable where natural appearance and precise orientation are critical for the success of multi-implant restorations.

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
