BIONIKA AE, Impression coping for open tray, multi-unit level, positioned, narrow

Brand characteristics

The BIONIKA AE implant system is compatible with the Astra Tech® OsseoSpeed® EV platform and features a conical internal connection that ensures micromovement-free load transfer and high primary stability.

Its precise conical–hex geometry with a 30° cone angle directs forces deep into the implant body, promoting bone preservation and long-term soft tissue stability.

The spirally micro-grooved, self-locking, and self-compressing thread structure fits perfectly into both cortical and spongy bone zones, resulting in rapid osseointegration.

The platform switching design enables natural adaptation of bone and soft tissues around the implant shoulder, providing an aesthetic and hygienic seal.

With its anatomical root shape, rounded apex, and bone-condensing thread geometry, the AE system is an ideal choice for clinical cases requiring high aesthetic standards and long-term stability.

Geometry characteristics

Narrow, indexed impression coping with accurate orientation for open tray technique

The Impression coping for open tray, multi-unit level, positioned, narrow is a precision impression component designed for multi-unit systems and open tray impressions. Its narrow design allows use in tight implant sites, small interproximal spaces, or limited soft tissue height, where a compact form is essential.

The indexed design ensures the coping is always seated in the same orientation relative to the multi-unit abutment, allowing the spatial information captured in the impression to be accurately transferred to the dental model. This is crucial in restorations involving multiple implants, where precise orientation is key to the final fit and aesthetics.

Main advantages:

• Narrow design: Ideal for tight interimplant spaces and small multi-unit platforms.
• Multi-unit level connection: Accurate interface with systems linking multiple implants.
• For open tray technique: Ensures excellent three-dimensional transfer with direct screw-retention.
• Indexed configuration: Predetermined orientation for high-precision repositioning.
• Biocompatible, sterilizable material: Precisely machined for clinical and laboratory use.

Application:

The Impression coping for open tray, multi-unit level, positioned, narrow is the ideal solution for multi-implant restorations requiring accurate orientation, especially in cases with limited anatomical space where narrow components are beneficial.

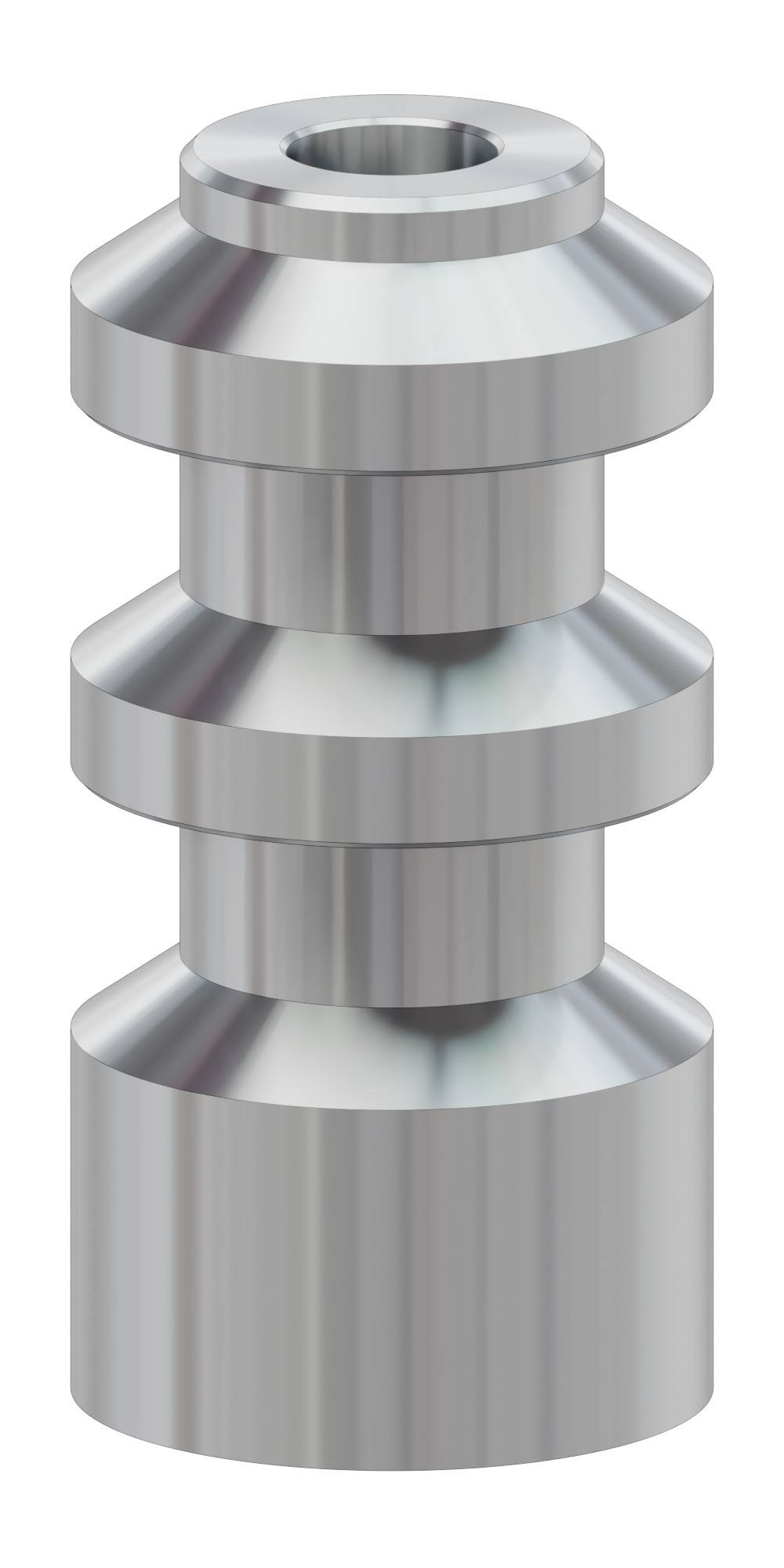

The product image is for illustration purposes only; colour and geometry may vary depending on the selected dimensions.
