BIONIKA AE, Impression coping for closed tray, angled, type-B

Brand characteristics

The BIONIKA AE implant system is compatible with the Astra Tech® OsseoSpeed® EV platform and features a conical internal connection that ensures micromovement-free load transfer and high primary stability.

Its precise conical–hex geometry with a 30° cone angle directs forces deep into the implant body, promoting bone preservation and long-term soft tissue stability.

The spirally micro-grooved, self-locking, and self-compressing thread structure fits perfectly into both cortical and spongy bone zones, resulting in rapid osseointegration.

The platform switching design enables natural adaptation of bone and soft tissues around the implant shoulder, providing an aesthetic and hygienic seal.

With its anatomical root shape, rounded apex, and bone-condensing thread geometry, the AE system is an ideal choice for clinical cases requiring high aesthetic standards and long-term stability.

Geometry characteristics

Accurate Implant Impression with Angle Correction and Defined Orientation

The Impression coping for closed tray, angled, type-B is an implant-level impression component specifically developed for the closed tray technique. Its angled design enables angle compensation, making it particularly advantageous when the implant axis deviates from the ideal direction.

The Type B positioning ensures that a specific corner of the connecting interface always aligns in the same orientation relative to the top part of the coping. This allows for precise and predictable reproduction during laboratory procedures, which is crucial in multiple-implant restorations where coordinated orientation is essential.

Main Advantages:

• Angled design: Facilitates angle correction for non-ideally positioned implants.
• For closed tray use: Enables impression taking without removing the coping, streamlining clinical workflows.
• Type B positioning: A specific corner of the connector is consistently aligned with the coping’s top for repeatable orientation.
• Implant-level connection: Provides stable, direct engagement with the implant.
• Biocompatible metal: Precisely machined, durable, and sterilisable material for clinical reliability.

Indications:

The Impression coping for closed tray, angled, type-B is the optimal choice in clinical situations requiring both angle correction and reliable orientation — particularly in the case of coordinated restorations involving multiple implants.

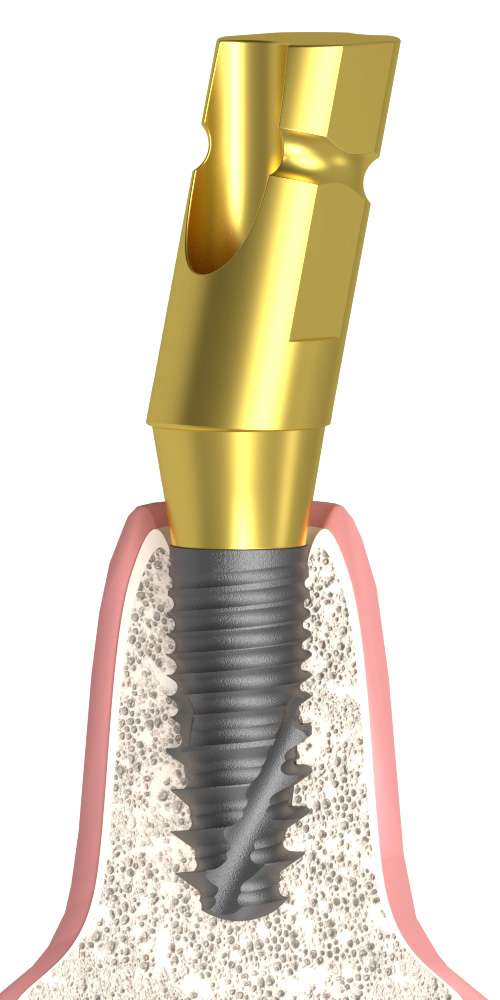

The product image is for illustration purposes only; colour and geometry may vary depending on selected parameters.
