BIONIKA AE, Impression coping for closed tray, angled, type-A

Brand characteristics

The BIONIKA AE implant system is compatible with the Astra Tech® OsseoSpeed® EV platform and features a conical internal connection that ensures micromovement-free load transfer and high primary stability.

Its precise conical–hex geometry with a 30° cone angle directs forces deep into the implant body, promoting bone preservation and long-term soft tissue stability.

The spirally micro-grooved, self-locking, and self-compressing thread structure fits perfectly into both cortical and spongy bone zones, resulting in rapid osseointegration.

The platform switching design enables natural adaptation of bone and soft tissues around the implant shoulder, providing an aesthetic and hygienic seal.

With its anatomical root shape, rounded apex, and bone-condensing thread geometry, the AE system is an ideal choice for clinical cases requiring high aesthetic standards and long-term stability.

Geometry characteristics

Impression Coping with Angle Correction and Fixed Orientation for Precise Transfer

The Impression coping for closed tray, angled, type-A is an implant-level component designed for closed tray impression techniques. Its angled geometry allows for angle correction, making it possible to accurately capture the position of implants placed at non-ideal angles. The Type A orientation ensures that the coping consistently locks into the same predefined rotational position on the implant, supporting precise prosthetic alignment.

The Type A system refers to a design where one flat surface of the connecting interface always aligns identically relative to the top part of the coping. This facilitates predictable and reproducible adjustments, particularly important in multiple-implant restorations.

Main Advantages:

• Angled design: Enables angle correction for non-ideal implant positions.
• For closed tray technique: Impression taking without removing the coping from the patient’s mouth.
• Type A positioning: Flat surface of the connector consistently aligned with the top part.
• Implant-level connection: Direct fit to the implant interface.
• Biocompatible metal: Precisely machined, durable, and sterilisable material.

Indications:

The Impression coping for closed tray, angled, type-A is the ideal solution in clinical cases requiring both angle correction and fixed positioning during impression taking, especially in multi-implant configurations.

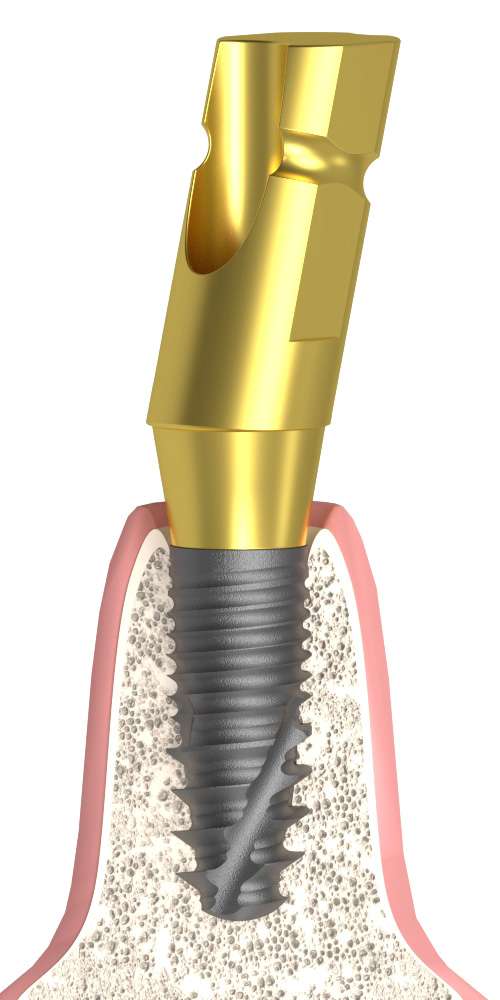

The product image is for illustration purposes only; colour and geometry may vary depending on selected parameters.
