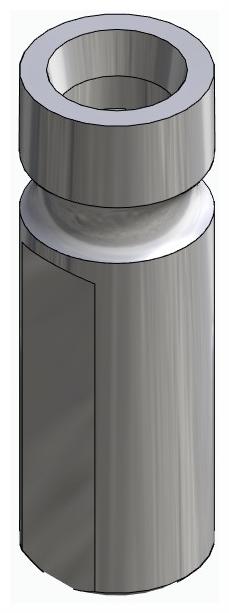

BIONIKA AE, Implant analog for digital scan

Brand characteristics

The BIONIKA AE implant system is compatible with the Astra Tech® OsseoSpeed® EV platform and features a conical internal connection that ensures micromovement-free load transfer and high primary stability.

Its precise conical–hex geometry with a 30° cone angle directs forces deep into the implant body, promoting bone preservation and long-term soft tissue stability.

The spirally micro-grooved, self-locking, and self-compressing thread structure fits perfectly into both cortical and spongy bone zones, resulting in rapid osseointegration.

The platform switching design enables natural adaptation of bone and soft tissues around the implant shoulder, providing an aesthetic and hygienic seal.

With its anatomical root shape, rounded apex, and bone-condensing thread geometry, the AE system is an ideal choice for clinical cases requiring high aesthetic standards and long-term stability.

Geometry characteristics

Model Implant for Digital Impression-Taking and CAD/CAM Workflows

The Implant analog for digital scan is a specially designed model implant intended for digital dental laboratory workflows. It accurately replicates the original implant’s connection geometry, while its surface is optimised for precise detection by both intraoral and laboratory scanners, ensuring distortion-free, high-resolution data capture.

Based on the digital impression, this model implant enables the accurate design and manufacturing of prosthetic components and restorations using CAD/CAM technology. It can be securely integrated into printed or moulded models, ensuring accurate spatial position transfer between digital and physical workflows.

Main Advantages:

• Scanner-optimised surface: Excellent visibility for digital scanners, ensuring high-precision scans.
• Implant-compatible interface: Precisely replicates the connection geometry of the original implant.
• For digital workflows: Enables full CAD/CAM integration from design to fabrication.
• Stable model fixation: Securely insertable into 3D-printed or conventional models.

Application:

The Implant analog for digital scan is an ideal solution for any dental laboratory working with digital workflows, where accurate and distortion-free modelling of implant-supported restorations is a critical requirement.

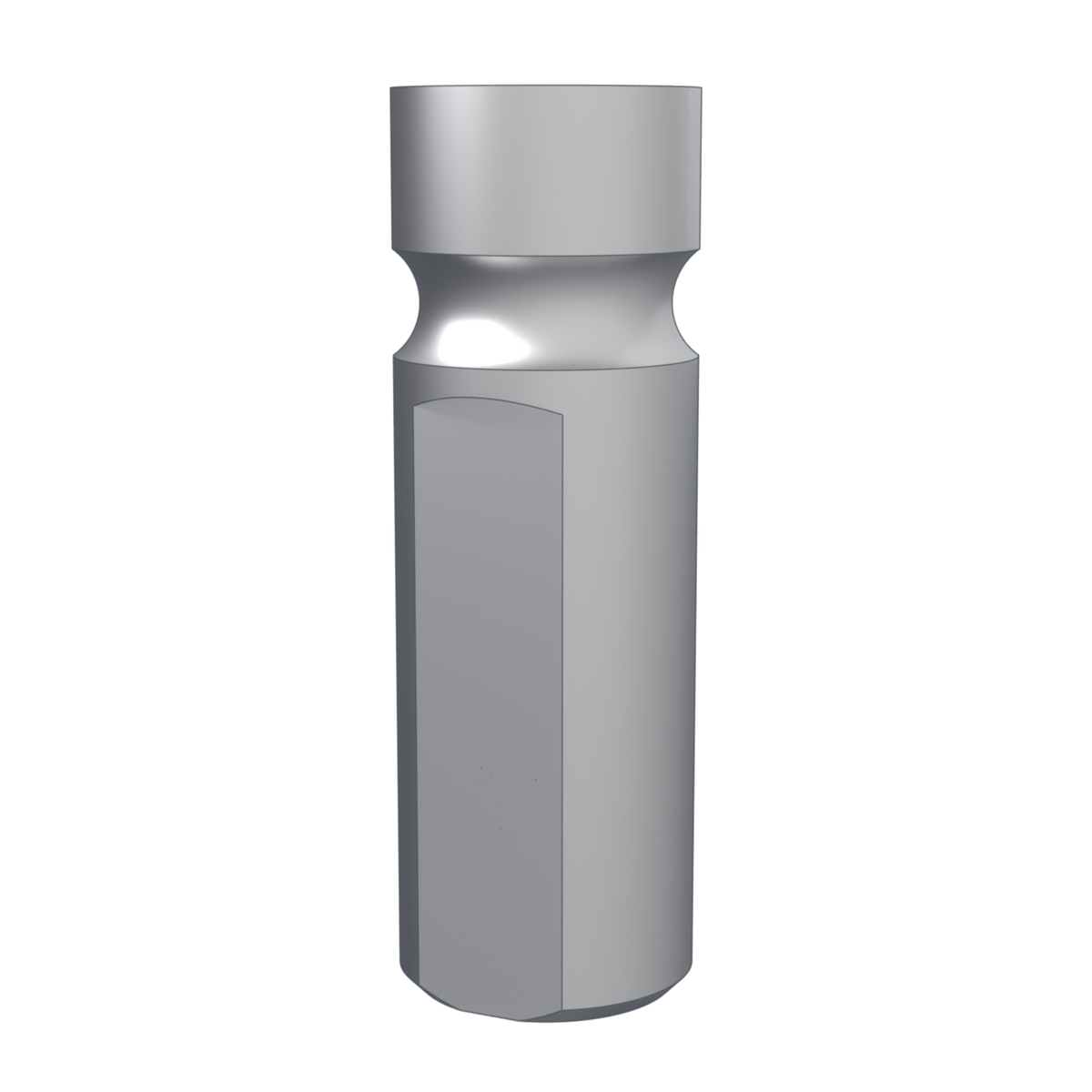

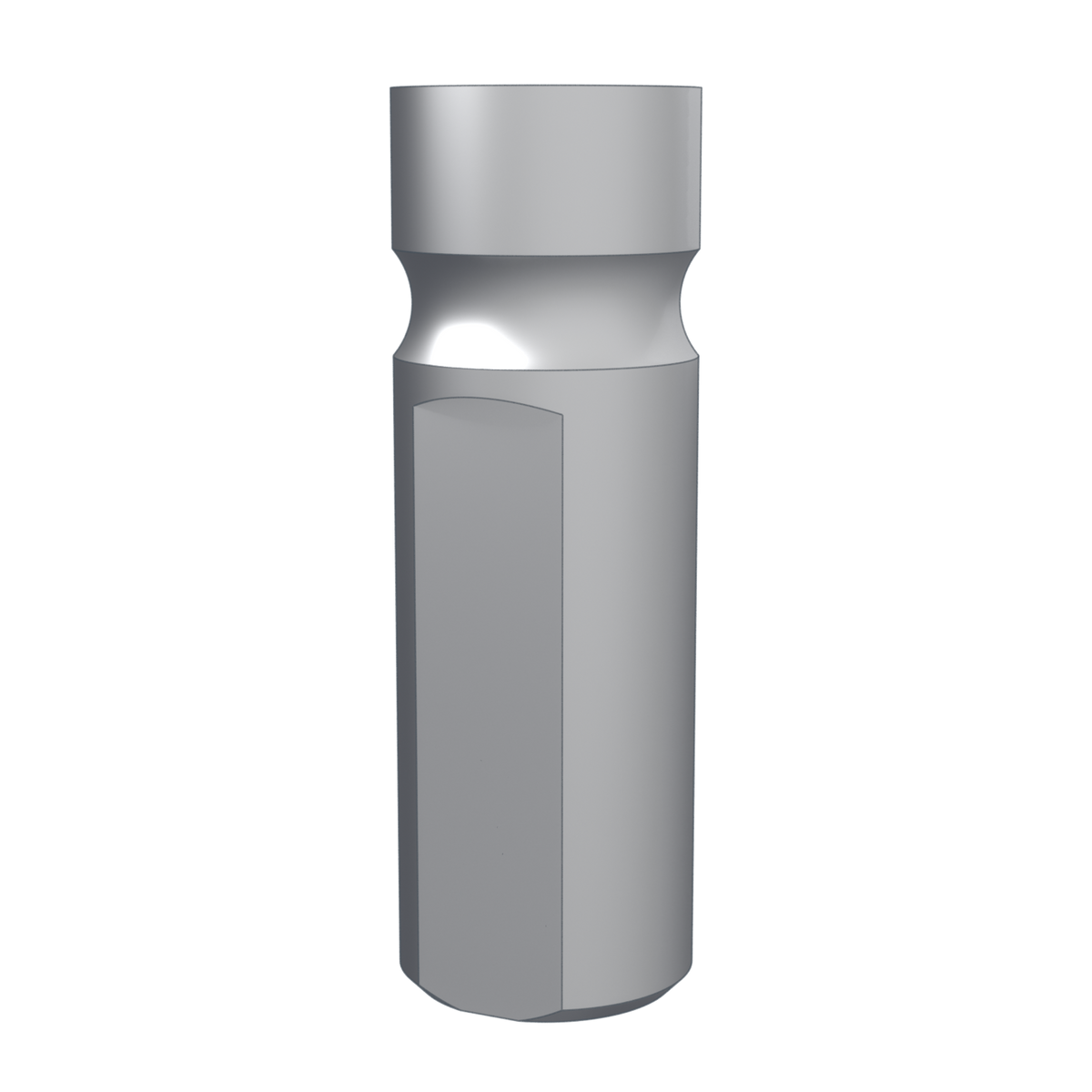

The product image is for illustration purposes only; actual colour and geometry may vary depending on the selected dimensions.
