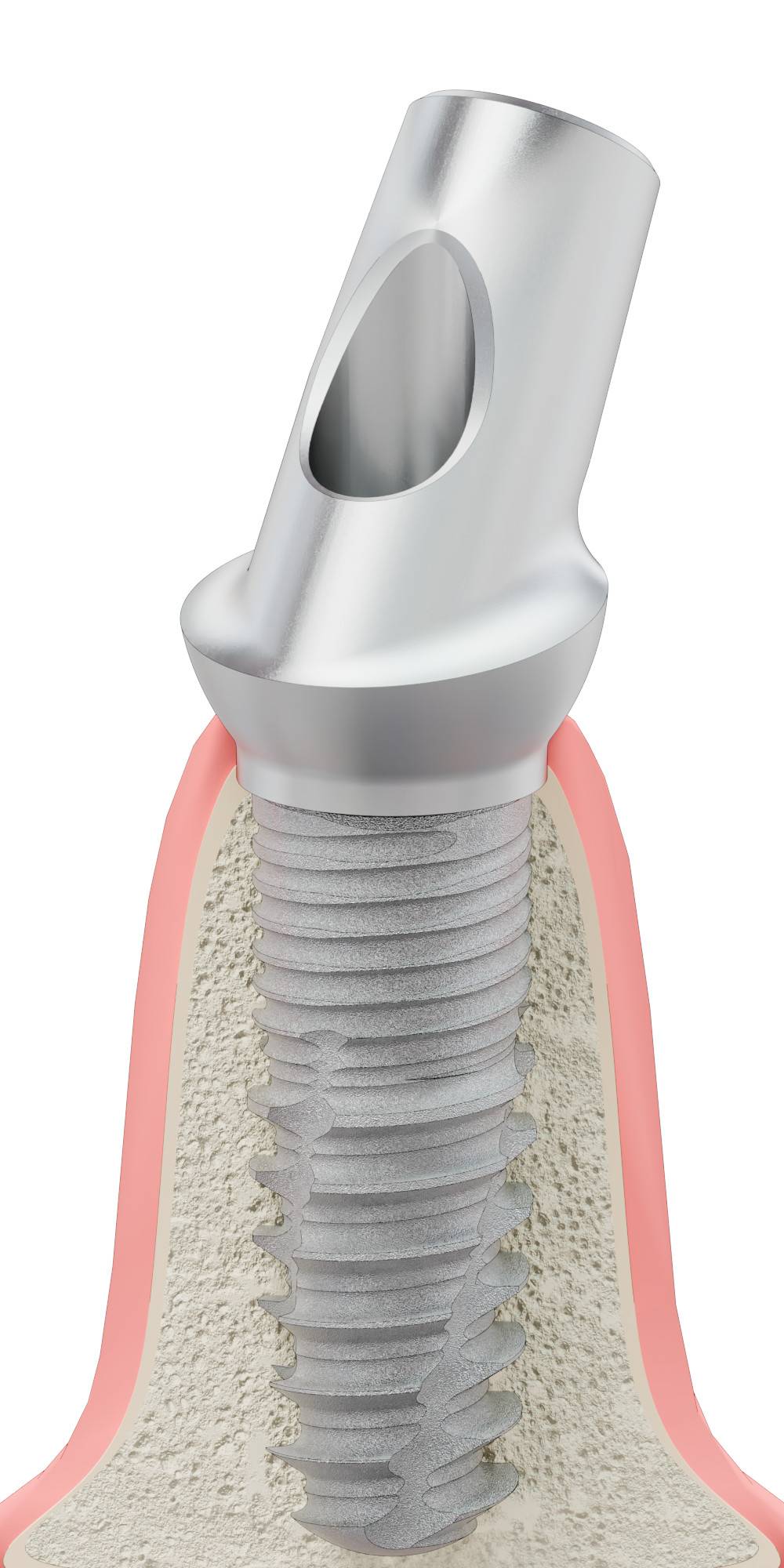

BIONIKA AE, Anatomic abutment, angled, 35°, positioned, type-A

Brand characteristics

The BIONIKA AE implant system is compatible with the Astra Tech® OsseoSpeed® EV platform and features a conical internal connection that ensures micromovement-free load transfer and high primary stability.

Its precise conical–hex geometry with a 30° cone angle directs forces deep into the implant body, promoting bone preservation and long-term soft tissue stability.

The spirally micro-grooved, self-locking, and self-compressing thread structure fits perfectly into both cortical and spongy bone zones, resulting in rapid osseointegration.

The platform switching design enables natural adaptation of bone and soft tissues around the implant shoulder, providing an aesthetic and hygienic seal.

With its anatomical root shape, rounded apex, and bone-condensing thread geometry, the AE system is an ideal choice for clinical cases requiring high aesthetic standards and long-term stability.

Geometry characteristics

Customisable Abutment for High-Angle Correction with Natural Contour and Precise Orientation

The Anatomic abutment, angled, 35°, positioned, type-A is an implant-level, customisable (grindable) abutment developed for implants exhibiting significant axial deviation. The 35° angulation allows for the correction of major discrepancies between the implant and prosthetic axes without compromising aesthetics or functionality.

The Type A indexed design ensures that the abutment is always repositioned in the same orientation. In this design, a specific flat surface of the connection consistently aligns with the same direction relative to the top of the abutment. This guarantees precise orientation, which is essential in multi-implant restorations.

Main Advantages:

• 35° angle correction: Outstanding capability to correct major axial deviations.
• Anatomical shape: Preformed design promotes natural appearance and gingival contours.
• Indexed orientation (Type A): Fixed flat surface ensures precise repositioning.
• Customisable design: Individually shapeable according to clinical or laboratory needs.
• Implant-level connection: Stable and reliable fit to the implant.
• Biocompatible titanium: Durable, tissue-friendly, and sterilisable material.
• The screw is included.

Indications:

The Anatomic abutment, angled, 35°, positioned, type-A is the ideal solution when the implant is significantly misaligned with the desired prosthetic axis and precise orientation along with a natural appearance are key—such as in restorations involving multiple implants.

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
