BIONIKA ACTIVAL, Multi-unit abutment, angled, positioned, wide, LT2.7, type-A

Brand characteristics

The BIONIKA Actival implant system utilizes the most advanced Cone & Hex connection geometry used in modern implantology. Its 24° conical angle ensures micromovement-free, precise force transmission and delivers exceptional stability.

The deep internal load distribution within the implant reduces stress on the cortical bone, guaranteeing reliable long-term osseointegration.

Its anatomical root-shaped, self-tapping, and bone-condensing thread design provides excellent primary stability, enabling immediate loading when clinically indicated.

The Actival system is compatible with multiple international implant platforms, including ADIN® CloseFit®, Callus®, Implant Direct® InterActive®, Nobel® ACTIVE®, and Nobel® Parallel® CC.

This wide compatibility offers clinicians greater flexibility in treatment planning while delivering the Hungarian precision and long-term reliability that characterize all BIONIKA products.

Geometry characteristics

Angled, Position-Oriented Multi-Unit Abutment for LT2.7 System, Wide Design with M1.6 Internal Thread

The Multi-unit abutment, angled, positioned, wide, LT2.7, type-A is a prosthetic abutment designed for connection to an implant or intermediate multi-unit base. Developed specifically for screw-retained restorations, the angled design allows correction of the divergence between the implant axis and the final restoration axis, while the wide profile offers enhanced support for soft tissues and prosthetics, especially in posterior regions.

The Type A position-oriented interface ensures that a defined flat surface of the connection consistently aligns with the same position relative to the top of the abutment during each reinsertion. This precise orientation supports optimal alignment of prosthetic components, which is especially important in multi-implant bridges and full-arch restorations.

The M1.6 internal thread at the top allows secure attachment of final prosthetic components such as bridge frameworks or screw-retained restorations. The lower part connects to the LT2.7 platform with a non-screw-based friction-fit geometry.

Main Advantages:

• Angular correction: Allows compensation for implant axis misalignment.
• Type A orientation: The flat surface of the connection always aligns to the same position.
• Wide design: Provides additional support for restorations in posterior zones.
• LT2.7 compatibility: Fully integrated with the appropriate system platform.
• M1.6 internal thread: Enables secure fixation of prosthetic components.
• Biocompatible titanium: Safe, sterilizable, and tissue-friendly material for long-term use.

Indications:

The Multi-unit abutment, angled, positioned, wide, LT2.7, type-A is an ideal solution for screw-retained restorations supported by multiple implants, particularly when angular correction, increased stability, and precise orientation are required in full compatibility with the LT2.7 system.

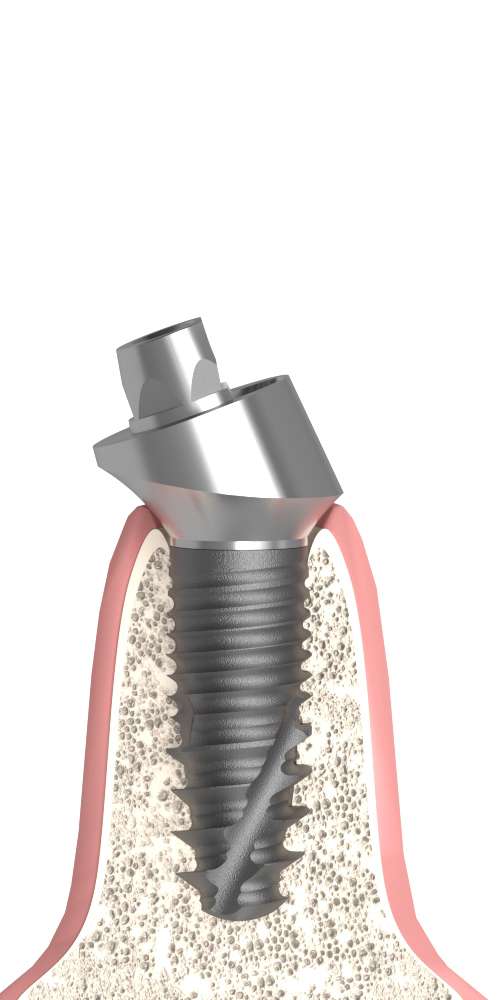

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
