BIONIKA 3I, Impression coping for closed tray, angled, type-B

Brand characteristics

The BIONIKA 3I implant system is compatible with the BIOMET® 3I® platform and features a conical and hexagonal (Cone & Hex) connection that ensures precise, micromovement-free fitting and reliable load transfer.

The 30° cone angle directs forces deep into the implant body, reducing the risk of bone resorption and enhancing long-term stability.

The spirally micro-grooved, self-locking thread profile provides optimal engagement in the cortical layer, while the bone-condensing, self-cutting thread geometry delivers outstanding primary stability in the spongy bone.

The platform switching design supports the natural adaptation of bone and soft tissue, creating a biological seal at the implant shoulder.

With its anatomical root-shaped design and rounded apex, the BIONIKA 3I implant ensures precise placement, excellent osseointegration, and long-term prosthetic reliability.

Geometry characteristics

Accurate Implant Impression with Angle Correction and Defined Orientation

The Impression coping for closed tray, angled, type-B is an implant-level impression component specifically developed for the closed tray technique. Its angled design enables angle compensation, making it particularly advantageous when the implant axis deviates from the ideal direction.

The Type B positioning ensures that a specific corner of the connecting interface always aligns in the same orientation relative to the top part of the coping. This allows for precise and predictable reproduction during laboratory procedures, which is crucial in multiple-implant restorations where coordinated orientation is essential.

Main Advantages:

• Angled design: Facilitates angle correction for non-ideally positioned implants.
• For closed tray use: Enables impression taking without removing the coping, streamlining clinical workflows.
• Type B positioning: A specific corner of the connector is consistently aligned with the coping’s top for repeatable orientation.
• Implant-level connection: Provides stable, direct engagement with the implant.
• Biocompatible metal: Precisely machined, durable, and sterilisable material for clinical reliability.

Indications:

The Impression coping for closed tray, angled, type-B is the optimal choice in clinical situations requiring both angle correction and reliable orientation — particularly in the case of coordinated restorations involving multiple implants.

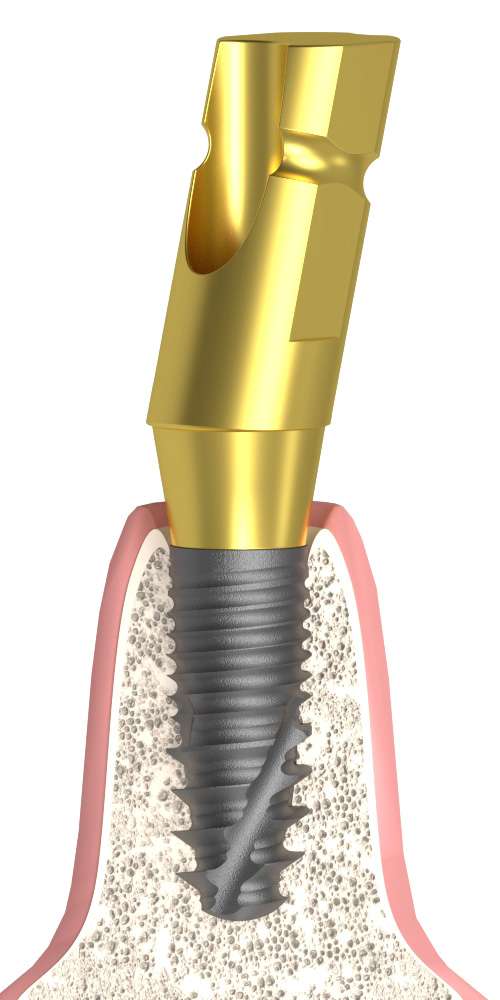

The product image is for illustration purposes only; colour and geometry may vary depending on selected parameters.
