BIONIKA 3I, Anatomic abutment, angled, 35°, positioned, type-B

Brand characteristics

The BIONIKA 3I implant system is compatible with the BIOMET® 3I® platform and features a conical and hexagonal (Cone & Hex) connection that ensures precise, micromovement-free fitting and reliable load transfer.

The 30° cone angle directs forces deep into the implant body, reducing the risk of bone resorption and enhancing long-term stability.

The spirally micro-grooved, self-locking thread profile provides optimal engagement in the cortical layer, while the bone-condensing, self-cutting thread geometry delivers outstanding primary stability in the spongy bone.

The platform switching design supports the natural adaptation of bone and soft tissue, creating a biological seal at the implant shoulder.

With its anatomical root-shaped design and rounded apex, the BIONIKA 3I implant ensures precise placement, excellent osseointegration, and long-term prosthetic reliability.

Geometry characteristics

Customisable Abutment for Advanced Angle Correction with Precise Orientation and Natural Contours

The Anatomic abutment, angled, 35°, positioned, type-B is an implant-level, customisable (grindable) abutment offering an excellent solution for cases where the implant inclination significantly deviates from the desired prosthetic axis. The 35° angulation allows for the correction of non-ideal implant positioning, while the anatomical shape helps to create a natural gingival contour and aesthetic outcome.

The Type B indexing ensures that a specific apex of the connection surface is always aligned in the same direction relative to the top of the abutment. This fixed orientation allows the abutment to return to the exact same position every time, which is critical in multi-implant restorations for achieving a precise fit and consistent aesthetic appearance.

Main Advantages:

• 35° angle correction: Ideal for compensating significant axial deviations.
• Anatomical design: Preformed shape for natural appearance and soft tissue support.
• Indexed orientation (Type B): Fixed apex ensures consistent and accurate repositioning.
• Customisable form: Can be individually shaped in both clinical and laboratory settings.
• Implant-level fit: Stable and reliable connection to the implant.
• Biocompatible titanium: Sterilisable and safe for long-term use.
• The screw is included.

Indications:

The Anatomic abutment, angled, 35°, positioned, type-B is the ideal choice for cases with pronounced angulation where precise repositioning and natural contouring are essential—such as multi-implant restorations in the aesthetic zone.

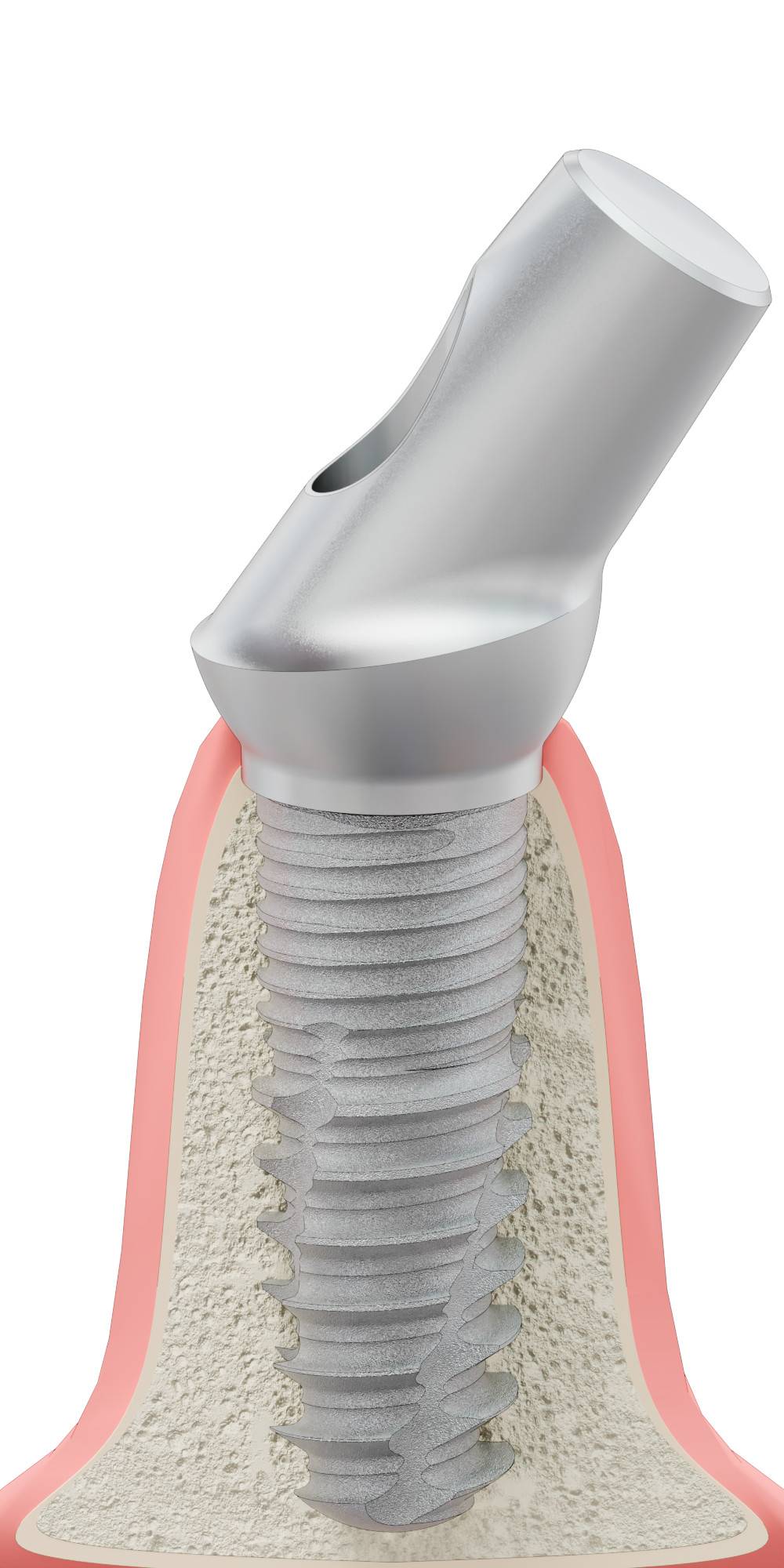

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
