BIONIKA 3I, Anatomic abutment, angled, 35°, positioned, type-A

Brand characteristics

The BIONIKA 3I implant system is compatible with the BIOMET® 3I® platform and features a conical and hexagonal (Cone & Hex) connection that ensures precise, micromovement-free fitting and reliable load transfer.

The 30° cone angle directs forces deep into the implant body, reducing the risk of bone resorption and enhancing long-term stability.

The spirally micro-grooved, self-locking thread profile provides optimal engagement in the cortical layer, while the bone-condensing, self-cutting thread geometry delivers outstanding primary stability in the spongy bone.

The platform switching design supports the natural adaptation of bone and soft tissue, creating a biological seal at the implant shoulder.

With its anatomical root-shaped design and rounded apex, the BIONIKA 3I implant ensures precise placement, excellent osseointegration, and long-term prosthetic reliability.

Geometry characteristics

Customisable Abutment for High-Angle Correction with Natural Contour and Precise Orientation

The Anatomic abutment, angled, 35°, positioned, type-A is an implant-level, customisable (grindable) abutment developed for implants exhibiting significant axial deviation. The 35° angulation allows for the correction of major discrepancies between the implant and prosthetic axes without compromising aesthetics or functionality.

The Type A indexed design ensures that the abutment is always repositioned in the same orientation. In this design, a specific flat surface of the connection consistently aligns with the same direction relative to the top of the abutment. This guarantees precise orientation, which is essential in multi-implant restorations.

Main Advantages:

• 35° angle correction: Outstanding capability to correct major axial deviations.
• Anatomical shape: Preformed design promotes natural appearance and gingival contours.
• Indexed orientation (Type A): Fixed flat surface ensures precise repositioning.
• Customisable design: Individually shapeable according to clinical or laboratory needs.
• Implant-level connection: Stable and reliable fit to the implant.
• Biocompatible titanium: Durable, tissue-friendly, and sterilisable material.
• The screw is included.

Indications:

The Anatomic abutment, angled, 35°, positioned, type-A is the ideal solution when the implant is significantly misaligned with the desired prosthetic axis and precise orientation along with a natural appearance are key—such as in restorations involving multiple implants.

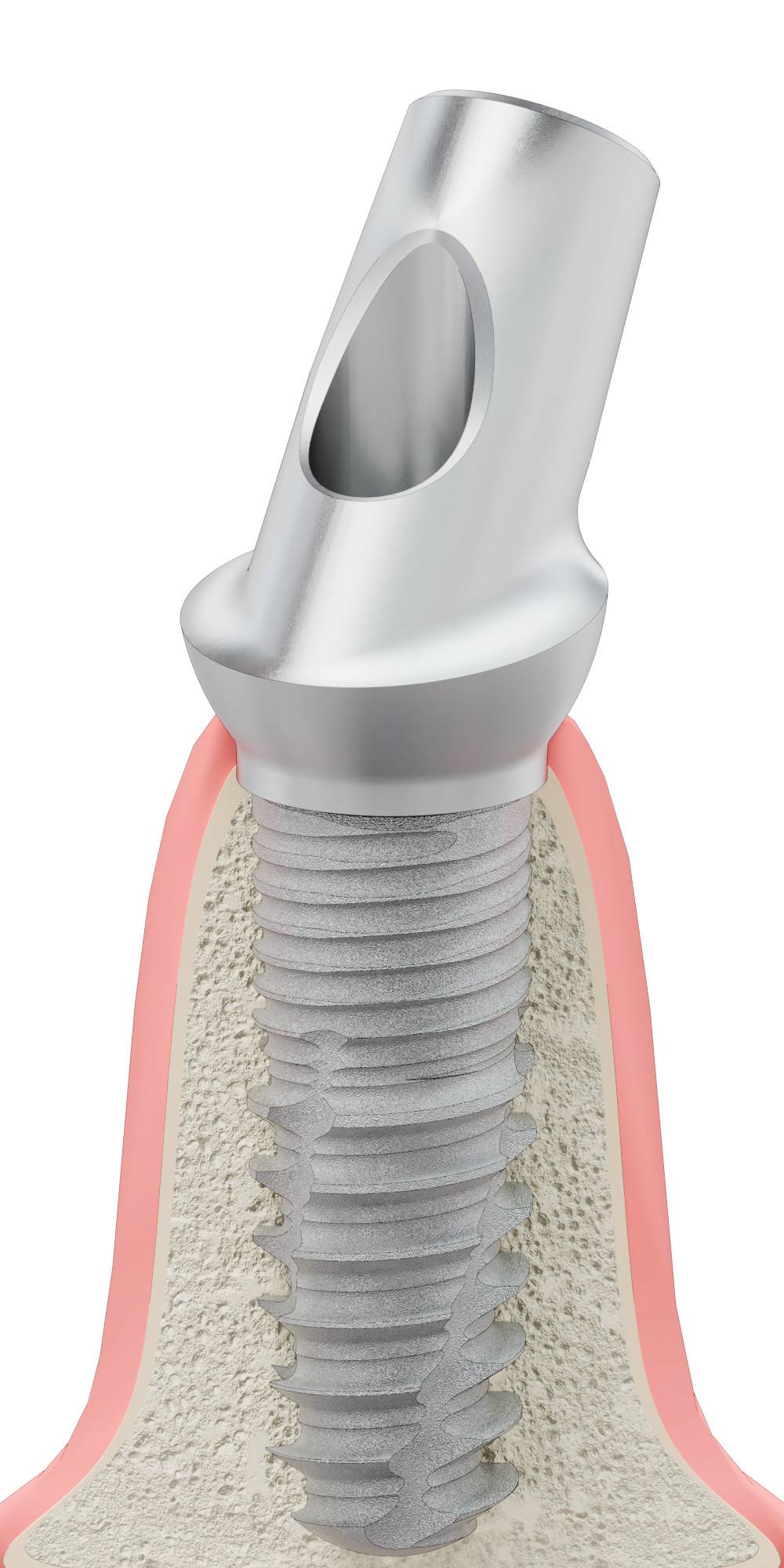

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
