BIONIKA 3I, Anatomic abutment, angled, 25°, positioned, type-B

Brand characteristics

The BIONIKA 3I implant system is compatible with the BIOMET® 3I® platform and features a conical and hexagonal (Cone & Hex) connection that ensures precise, micromovement-free fitting and reliable load transfer.

The 30° cone angle directs forces deep into the implant body, reducing the risk of bone resorption and enhancing long-term stability.

The spirally micro-grooved, self-locking thread profile provides optimal engagement in the cortical layer, while the bone-condensing, self-cutting thread geometry delivers outstanding primary stability in the spongy bone.

The platform switching design supports the natural adaptation of bone and soft tissue, creating a biological seal at the implant shoulder.

With its anatomical root-shaped design and rounded apex, the BIONIKA 3I implant ensures precise placement, excellent osseointegration, and long-term prosthetic reliability.

Geometry characteristics

Customisable Abutment for Significant Angle Correction with Natural Contours and Precise Orientation

The Anatomic abutment, angled, 25°, positioned, type-B is an implant-level, customisable (grindable) abutment designed for use in cases involving greater implant angulation. The 25° inclination enables the correction of substantial deviations between the implant and prosthetic axes, while the anatomical form supports the creation of a natural gingival profile and aesthetic appearance.

The Type B indexing means that a defined point on the connection surface is always oriented in the same direction relative to the top of the abutment. This precise orientation allows the abutment to be repositioned accurately every time, which is crucial for the coordinated and functionally reliable construction of multi-implant restorations.

Main Advantages:

• 25° angle correction: Compensates for significant implant axis deviations.
• Anatomical design: Preformed geometry supports natural soft tissue contouring and appearance.
• Indexed orientation (Type B): Defined apex ensures accurate repositioning every time.
• Customisable form: Suitable for individual adjustment in clinical and laboratory settings.
• Implant-level connection: Stable and direct fit to the implant.
• Biocompatible titanium: Sterilisable, durable, and suitable for long-term clinical application.
• The screw is included.

Indications:

The Anatomic abutment, angled, 25°, positioned, type-B is the ideal choice in situations where the implant axis significantly deviates from the prosthetic axis, and precise orientation is required for both functional reliability and aesthetic results.

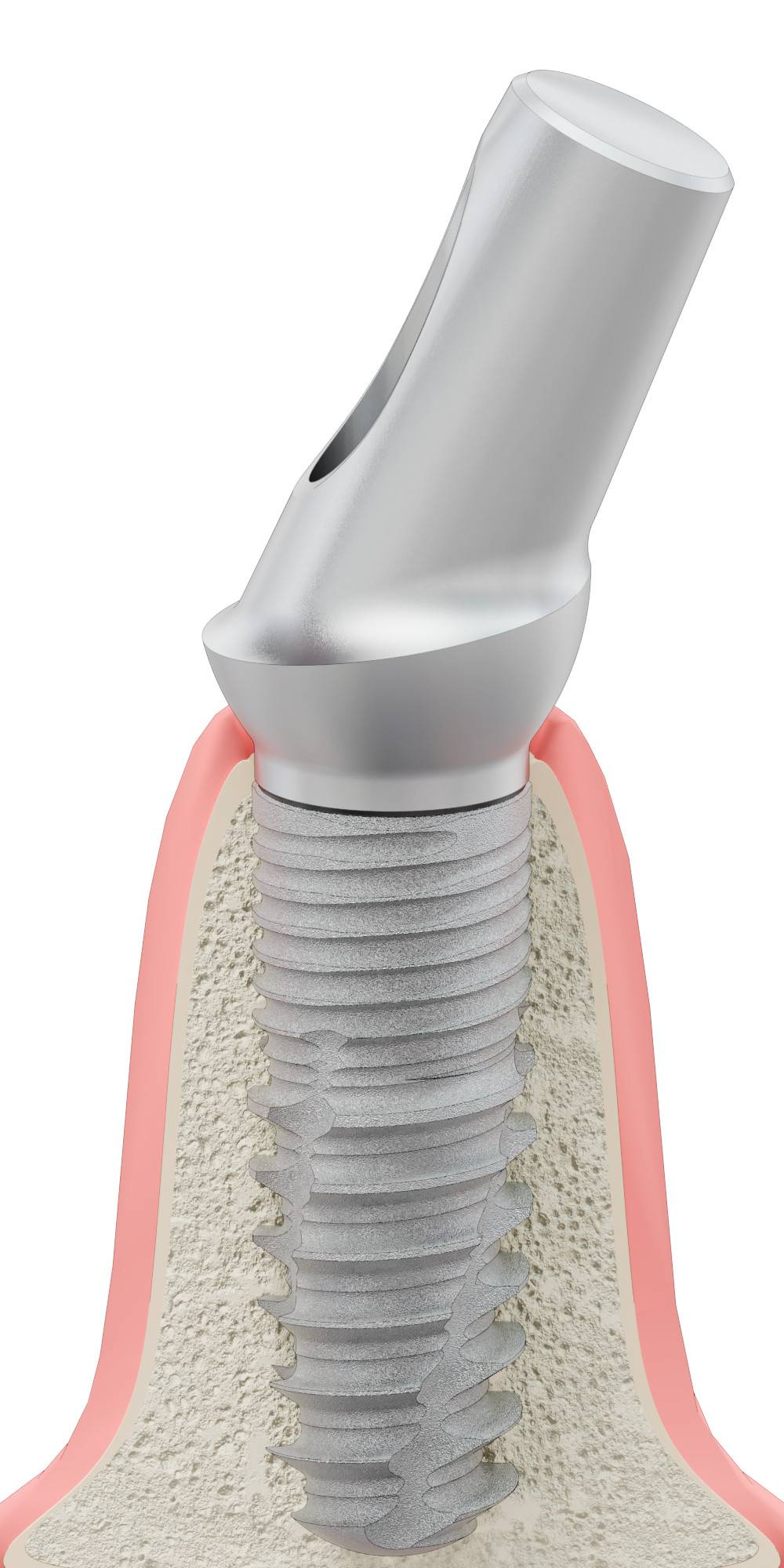

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
