BIONIKA IMPLIE, Multi-unit abutment, angled, positioned, wide, LT2.7, type-A

Brand characteristics

The BIONIKA IMPLIE implant system utilises a Cone & Hex connection geometry, ensuring precise, micromovement-free fitting and stable force transmission.

Its 22° easily detachable conical angle allows for accurate alignment and optimal load distribution, while the connection directs forces deep within the implant body, reducing stress on the cortical zone.

The conical, spirally micro-grooved thread structure engages firmly with the cortical layer, while the high-pitch, self-compressing spongiosa thread provides rapid bone condensation and excellent primary stability.

With its anatomical root-shaped design and self-cutting, self-locking thread profile, the implant is suitable for immediate loading.

The rounded, self-drilling apex facilitates precise insertion and allows minor directional adjustments during placement.

The BIONIKA IMPLIE system is compatible with the following implant platforms:

• Alpha Bio® CS
• Alpha Bio® NICE® CHC

It offers a precisely fitting and reliable alternative to leading international implant systems, combining Hungarian engineering precision with long-term clinical stability.

Geometry characteristics

Angled, Position-Oriented Multi-Unit Abutment for LT2.7 System, Wide Design with M1.6 Internal Thread

The Multi-unit abutment, angled, positioned, wide, LT2.7, type-A is a prosthetic abutment designed for connection to an implant or intermediate multi-unit base. Developed specifically for screw-retained restorations, the angled design allows correction of the divergence between the implant axis and the final restoration axis, while the wide profile offers enhanced support for soft tissues and prosthetics, especially in posterior regions.

The Type A position-oriented interface ensures that a defined flat surface of the connection consistently aligns with the same position relative to the top of the abutment during each reinsertion. This precise orientation supports optimal alignment of prosthetic components, which is especially important in multi-implant bridges and full-arch restorations.

The M1.6 internal thread at the top allows secure attachment of final prosthetic components such as bridge frameworks or screw-retained restorations. The lower part connects to the LT2.7 platform with a non-screw-based friction-fit geometry.

Main Advantages:

• Angular correction: Allows compensation for implant axis misalignment.
• Type A orientation: The flat surface of the connection always aligns to the same position.
• Wide design: Provides additional support for restorations in posterior zones.
• LT2.7 compatibility: Fully integrated with the appropriate system platform.
• M1.6 internal thread: Enables secure fixation of prosthetic components.
• Biocompatible titanium: Safe, sterilizable, and tissue-friendly material for long-term use.

Indications:

The Multi-unit abutment, angled, positioned, wide, LT2.7, type-A is an ideal solution for screw-retained restorations supported by multiple implants, particularly when angular correction, increased stability, and precise orientation are required in full compatibility with the LT2.7 system.

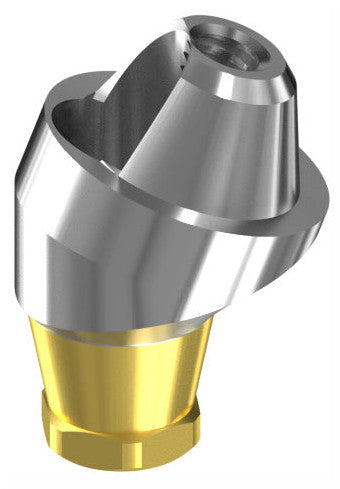

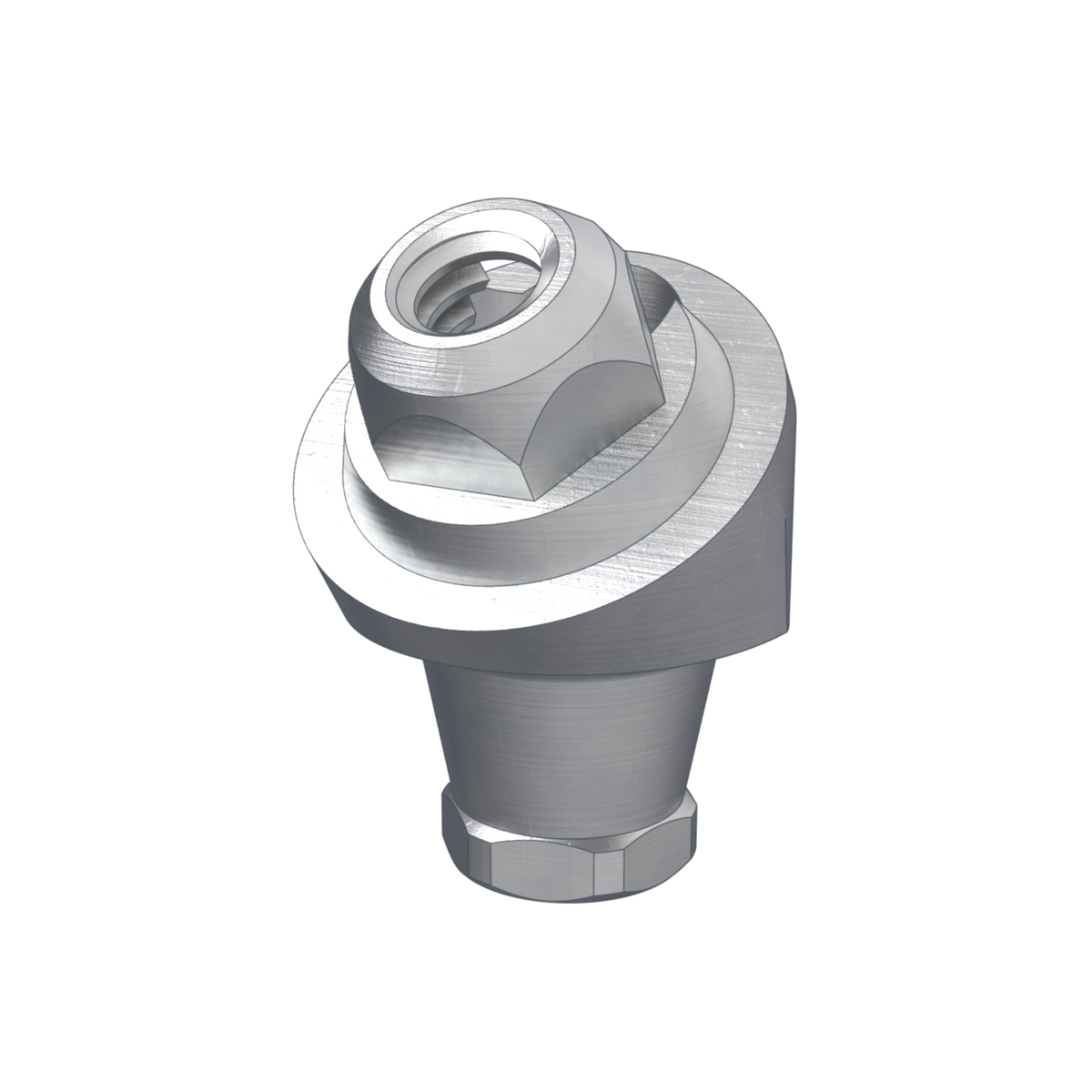

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
